REF-127-L-CN - Datasheet
MBA
Category Information

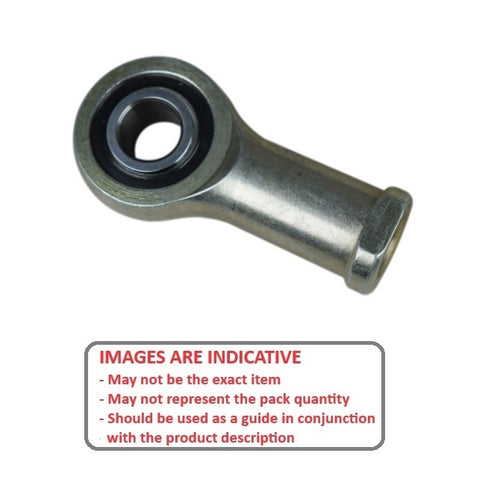

Rod Ends - Female - Steel - Plain - Nylon RacewayNylon Raceway Plain Steel Female Rod Ends. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
Product Data
- Eye Size (d1)
:
12.7
mm
(Equiv. 0.5 in.) - Overall Length (L)
53.98
mm
(Equiv. 2.125 in.) - Thread Size 1/2-20 UNF Left
- Thread Length (l2) 30.15 mm
- Head Width (W) 12.70 mm
- Eye Width (W1) 15.88 mm
- Head Diameter (D) 33.33 mm
- Centre Height (l1) 53.98 mm
- Body Width/Flange Width(W2/D3) 19.05 / 22.23 mm
- Material Steel with Nylon Raceway
Product Compliance and Data
Additional Resources
Cross References
- SPFL8
- SPFL-8
