SJ-8RS - Datasheet
MBA
Category Information

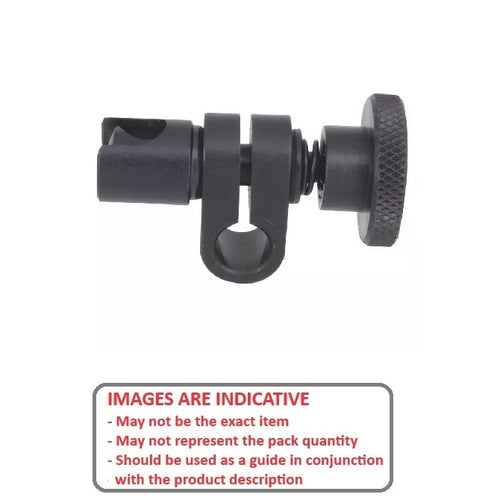

Joints - Swivel - Knob Style - SteelSteel Knob Style Swivel Joints. Precision made. Column lock feature. Will not become loose when adjusting. Universal design will fit any make of magnetic base, surface gauge or indicator. 12L14 Steel.
Product Data
- Hole Size
:
12.70
mm
(Equiv. 0.5 in.) - Hole Size
9.53
mm

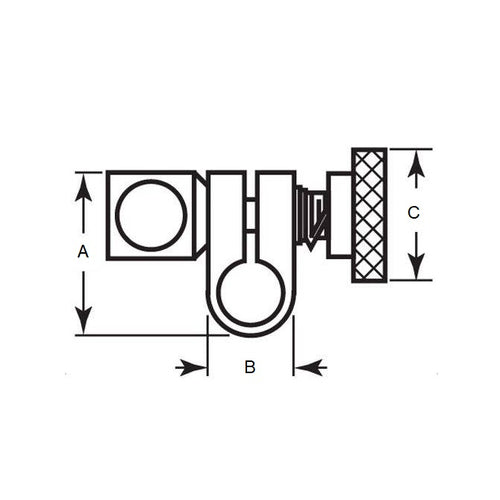

(Equiv. 0.375 in.) - A
26.988
mm
(Equiv. 1.063 in.) - B 15.875 mm
- C 25.400 mm
