MAG-BT-13-010-AN - Datasheet
MBA
Category Information

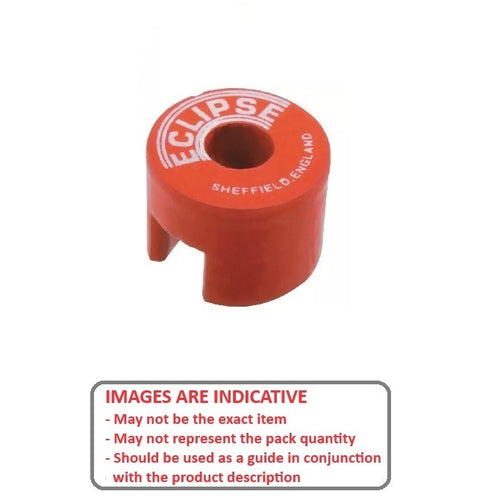

Magnets - Button AlnicoButton Alnico Magnets. Supplied with keeper
- Permanent magnet made from an alloy of Aluminum, Nickel, and Cobalt, along with iron and sometimes other metals like copper or titanium.
- Known for their excellent heat resistance and corrosion resistance, making them ideal for high-temperature applications like electric motors, sensors, and speakers.
- While weaker than rare-earth magnets, Alnico magnets are more durable and stronger than ferrite magnets.
Product Data

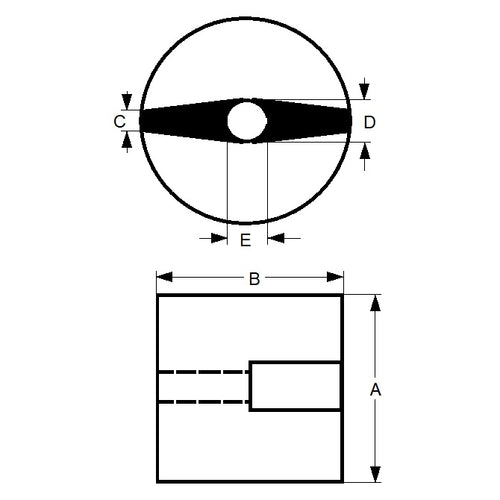

- Diameter (A)
:
12.7
mm
(Equiv. 0.5 in.) - Length (B)
9.52
mm
(Equiv. 0.375 in.) - Slot End Width (C)
3.96
mm
(Equiv. 0.156 in.) - D 7.14 mm
- E 4.34 mm
- Pull 0.67 kg
Product Compliance and Data
Additional Resources
Cross References
- E821
