LZ-500RS - Datasheet
MBA
Category Information

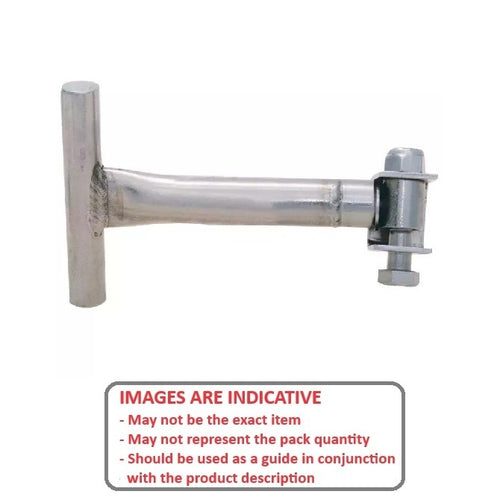

Clamps - LorenzLorenz Clamps. Patented quick clamp is ideal for door openings on bins, hoppers, tanks and manholes. T-Handle allows torque without tools. The one piece unit is made from highly polished 304 stainless steel.
- Full 50.8mm adjustment.
- 180o pivot when disengaged leaving access doorway unobstructed.
- Will not loosen through vibration.
- Brackets supplied for easy installation.

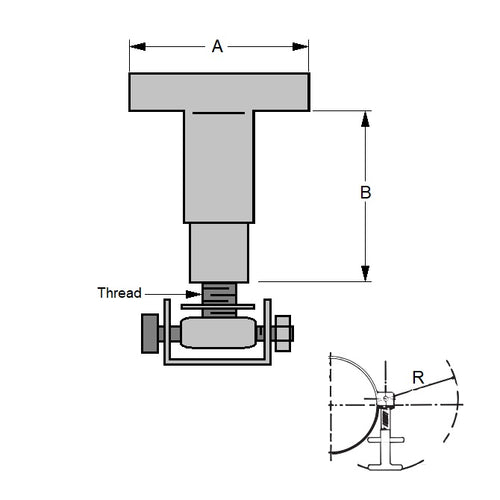

Product Data
- Thread : 12.700
- A
88.900
mm
(Equiv. 3.5 in.) - B
76.200
mm
(Equiv. 3 in.) - Radius in Open position (R) 171.450 mm
