LOHP-0127-089-TSS - Datasheet

MBA

Product Data

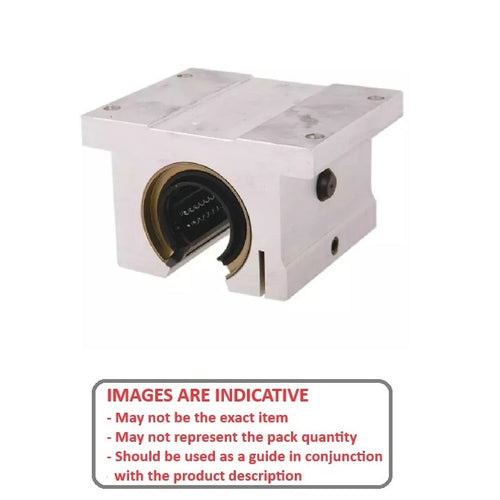

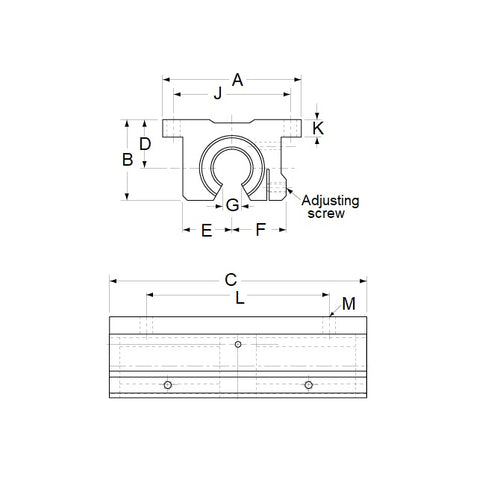

• Nominal Diameter : 12.700 mm
  (Equiv. 0.5 in.)
• Overall Length (C) 88.900 mm
  (Equiv. 3.5 in.)
• Height (B) 28.702 mm
  (Equiv. 1.13 in.)
• Width (A) 50.800 mm
• Centre Height (D) 17.450 mm
• Centre Width (E) 17.526 mm
• Centre Width (F) 19.050 mm
• Opening Distance (G) 7.874 mm
• Bolt Centres (J x L) 42.875 x 25.400 mm
• Dynamic Load Capacity 163 kgf
• Bolt Hole (M) 4.064 mm
• Flange Thickness (K) 6.350 mm

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Thompson SSUTWNO-8
• TLM1140
• TLM-1140
• SSUTWNO8
