TLM-1956RS - Datasheet

MBA

Category Information

Linear - Rail Supports - With Shaft - Standard

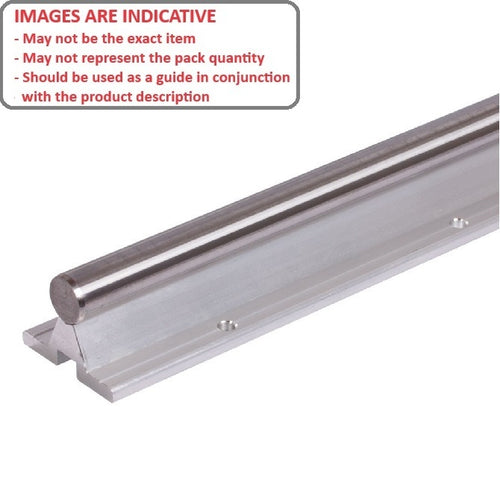

Standard With Shaft Rail Supports Linear. Includes linear shafting.

  • Includes shaft to h6 tolerances.
  • Support is made from aluminium

Product Data

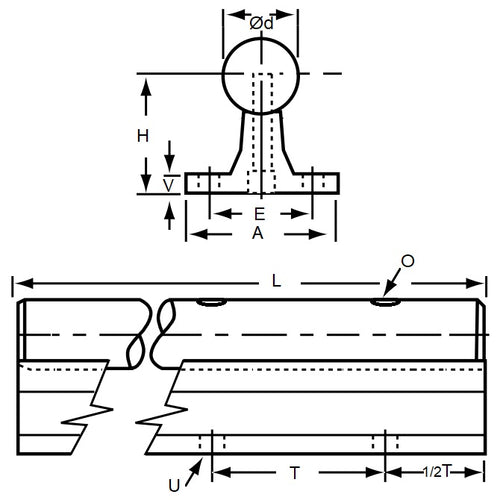

  • Suitable Shaft Size (d) : 12.700 mm
    (Equiv. 0.5 in.)
  • Height to Shaft Centre (H) 28.58 mm
    (Equiv. 1.125 in.)
  • Length (+0/-1.59mm) 1219.2 mm
    (Equiv. 48 in.)
  • Foot Height (V) 4.826 mm
  • Base Width (A) 38.1 mm
  • Support Angle (a) 20 °
  • Hole Spacing (T) 101.6 mm
  • Base Mtg. Hole (U) 4.318 mm
  • Shaft Mtg. Hole (O) 4.318 mm
  • Bolt Hole Centres (E) 25.4 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 59585K53
