CS-1270-2540-19-S2 - Datasheet

MBA

Category Information

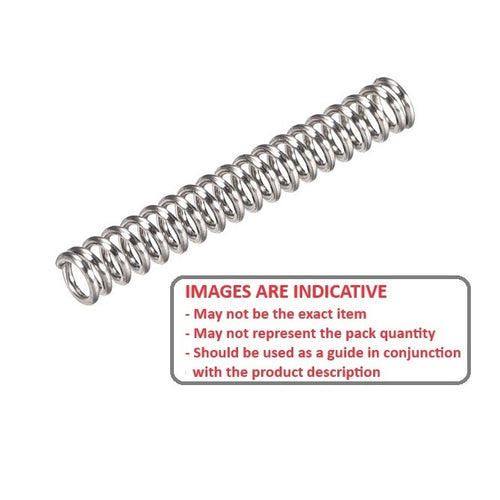

Springs - Compression - Stainless Steel

Stainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

  • Spring OD (D0) : 12.70 mm +/- 0.203
    (Equiv. 0.5 in.)
  • Free Length (L0) 254.0 mm +/- 7.62
    (Equiv. 10 in.)
  • Wire Diameter (d) 1.91 mm +/- 0.02
    (Equiv. 0.075 in.)
  • Approx. ID 8.9 mm
  • End Type Open
  • Max Rod Dia. (A) 8.25 mm
  • Material Stainless Steel 302/304 (Similar to A2, 18-8)
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • SSS-28
  • SSS28
