SLH-1270-2223-06985-H - Datasheet
MBA
Category Information

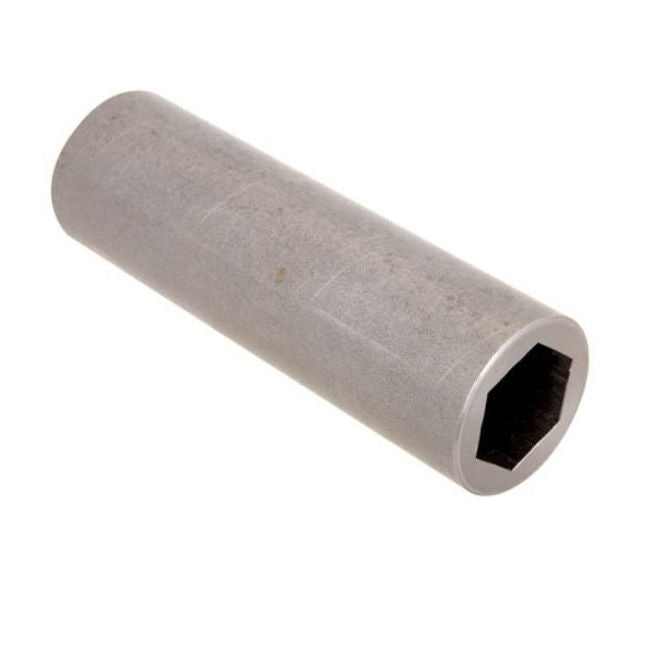

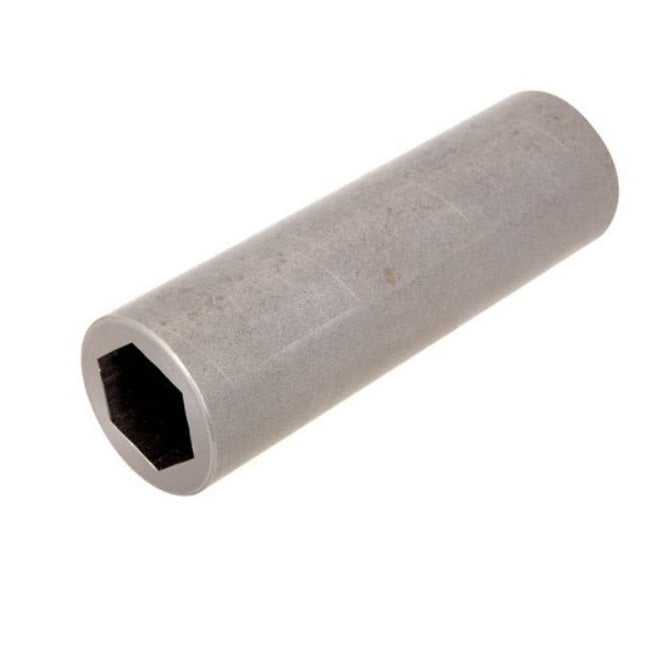

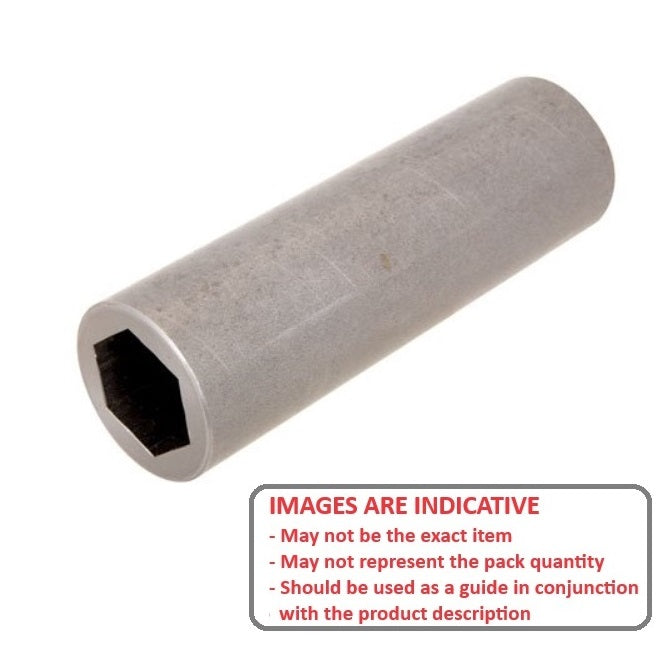

Sleeves - Hex Hole - HardenedHardened Hex Hole Sleeves. Pre hardened to Rockwell 23-30C. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD. Round OD with with a uniform hex hole broached from one end to the other.
Product Data

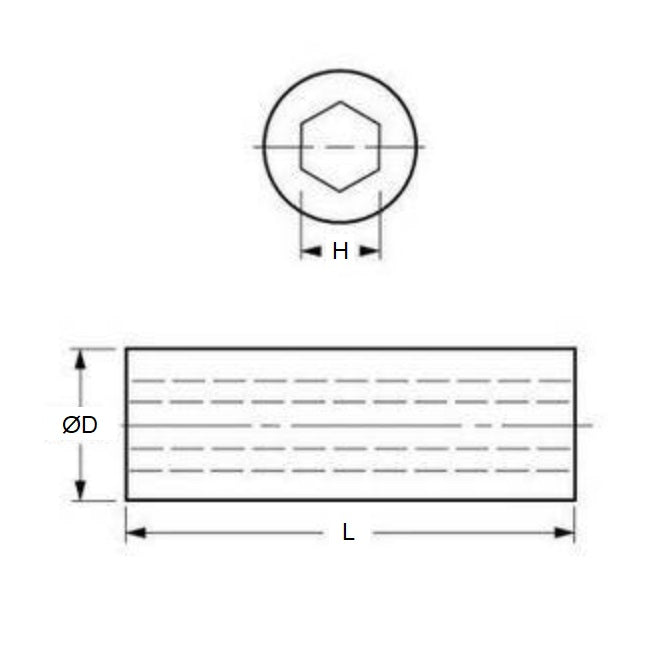

- Nominal Hex Size
:
12.7
mm
(Equiv. 0.5 in.) - Outside Diameter (OD)
22.225
mm
(Equiv. 0.875 in.) - Length (L)
69.850
mm
(Equiv. 2.75 in.) - Actual Hex Size (H) 12.776 mm
- Material Pre-Hardened Steel
Product Compliance and Data
Additional Resources
Cross References
- HHS114
- HHS-114
