SLH-1270-2064-06985 - Datasheet
MBA
Category Information

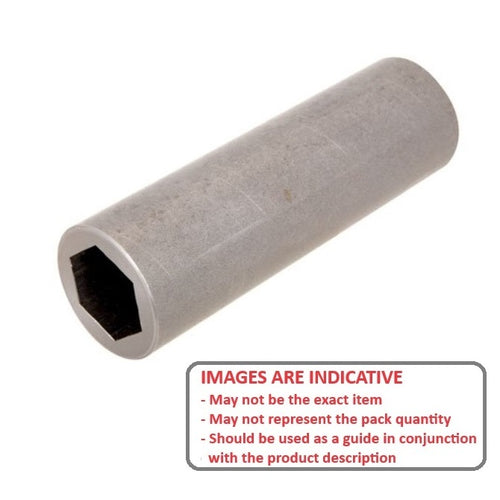

Sleeves - Hex Hole - Carbon SteelCarbon Steel Hex Hole Sleeves. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD.
- Precisely machined, round outer surface and a uniform, precisely broached hex-shaped hole completely through its center.
Product Data

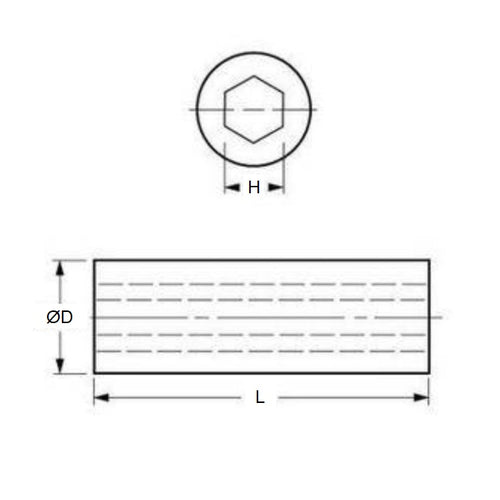

- Nominal Hex Size
:
12.7
mm
(Equiv. 0.5 in.) - Outside Diameter (OD)
20.638
mm
(Equiv. 0.813 in.) - Length (L)
69.850
mm
(Equiv. 2.75 in.) - Actual Hex Size (H) 12.776 mm
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- Small Parts 10000144
- HHS-14
- HHS14
- A7C20-08
- A7C2008
