SLQ-1270-1984-06985 - Datasheet
MBA
Category Information

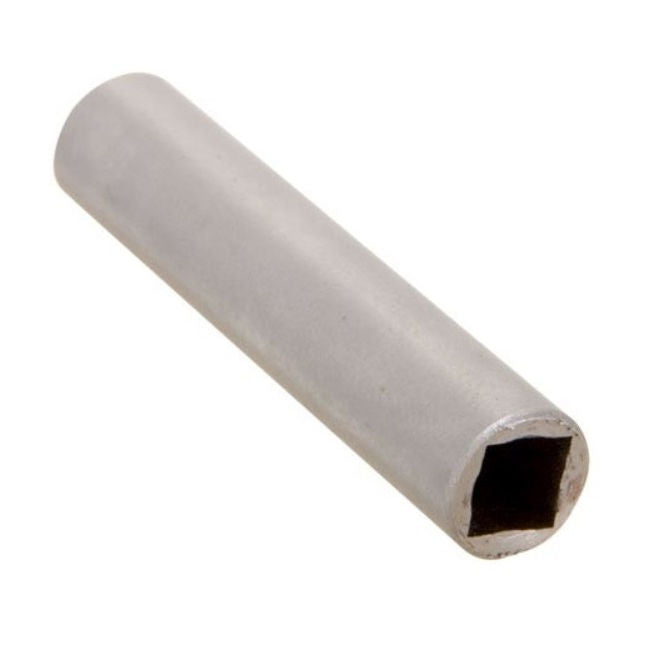

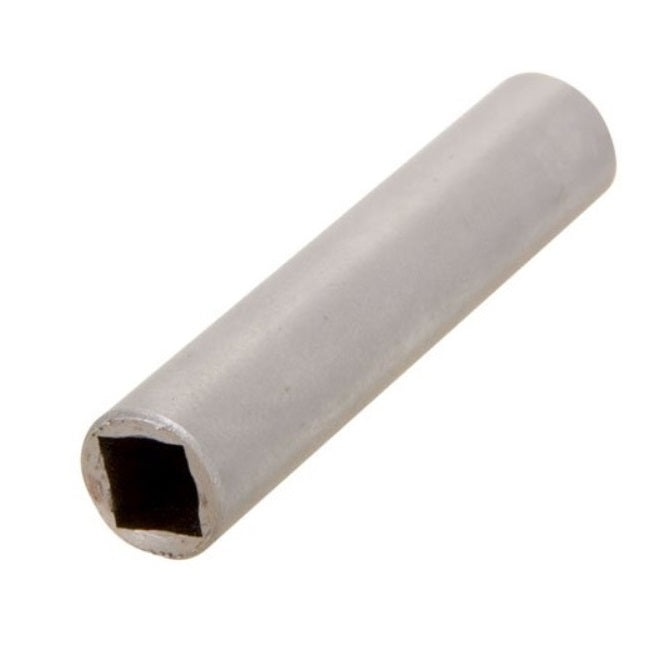

Sleeves - Square Hole - Plain - Carbon SteelCarbon Steel Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in).
- Precisely machined, round outer surface and a uniform, precisely square-shaped hole completely through its center.
Product Data
- Nominal Square Size
:
12.700
mm
+/- 0.0254
(Equiv. 0.5 in.) - Outside Diameter (C)
19.837
mm
(Equiv. 0.781 in.) - Length (B)
69.850
mm
(Equiv. 2.75 in.) - Actual Square Size (A) 12.827 mm
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- Small Parts 10000244
- SHSP50
- SHS-P50
- A7C19-P050
- A7C19P050
