CMM013-14-042C-R60SQ - Datasheet
MBA
Category Information

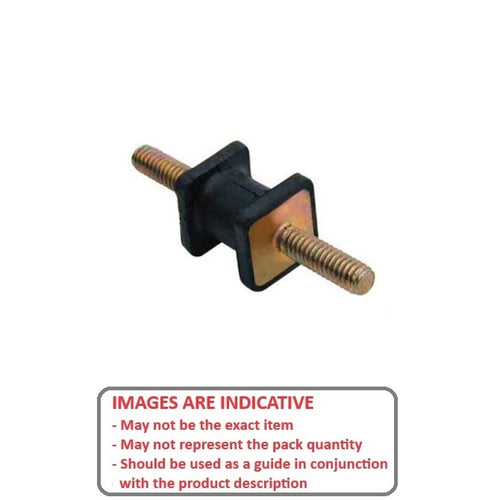

Mounts - Square Base BobbinSquare Base Bobbin Mounts. Rubber hardness 60 Duro Standard unless otherwise noted. Vibration dampening
- This category will be discontinued when this item is sold.
- The items is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Fastener may be steel, brass or zinc plated.
- Natural Rubber isolator.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

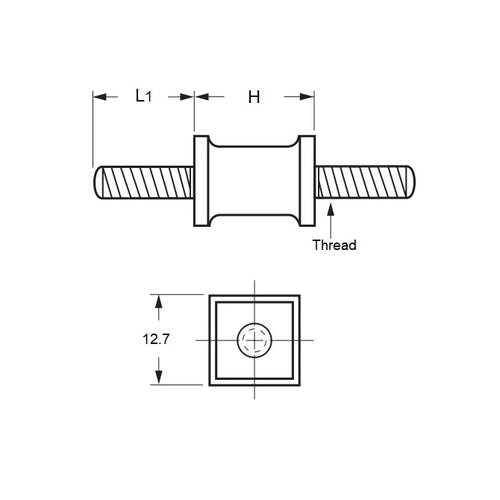

- Body Square
:
12.7
mm
(Equiv. 0.5 in.) - Body Length (H)
14.3
mm
(Equiv. 0.563 in.) - Thread Size 8-32 UNC (32 TPI)
- Shore Hardness 60
- Thread Length (L1) 14.3 mm
- Compression Load 3.1 (7) Kg (lbs)
- Max Shear Load 1.26 (3) Kg (lbs)
- Configuration Male to Male
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- A10Z 1-323A
- A10Z1323A
- A10Z1-323A
