MAG-S-13-013-AN - Datasheet
MBA
Category Information

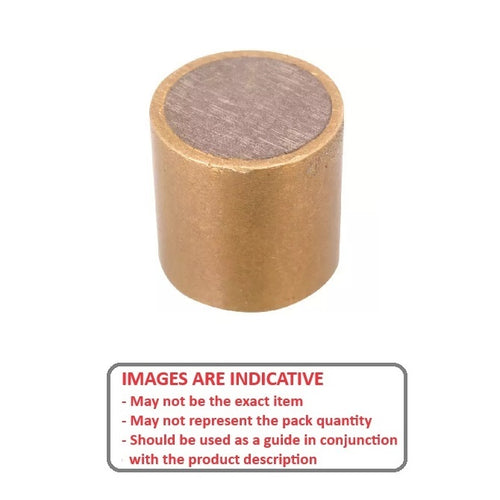

Magnets - Shielded AlnicoShielded Alnico Magnets. This is the main category in this series
- Permanent magnet made from an alloy of Aluminum, Nickel, and Cobalt, along with iron and sometimes other metals like copper or titanium.
- Known for their excellent heat resistance and corrosion resistance, making them ideal for high-temperature applications like electric motors, sensors, and speakers.
- While weaker than rare-earth magnets, Alnico magnets are more durable and stronger than ferrite magnets.
Product Data

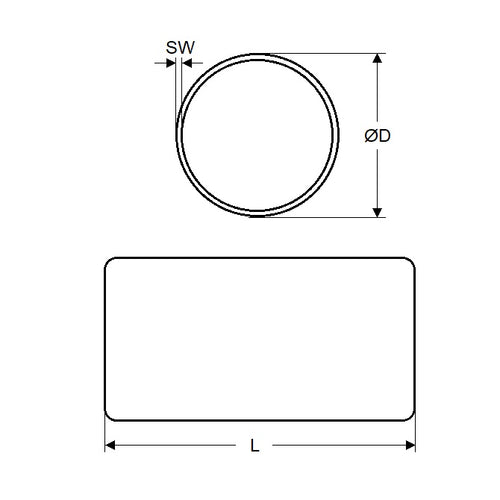

- Diameter (A) : 12.7 mm
- Length (B) 12.7 mm
- Sidewall Thickness 0.81 mm
- Max Pull 0.2 kg
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® IM-57
- IM57
