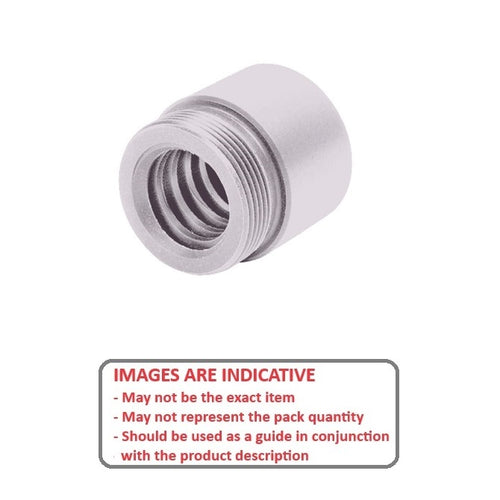

AR223RS - Datasheet
MBA
Category Information
Leadscrew - Nuts - Imperial - Acme - PlasticPlastic Acme Imperial Nuts Leadscrew. Acme Leadscrew Nuts - Use with Acme Leadscrew thread and flanges for mounting
- An expanded range may be available on special order. Please enquire.
Product Data

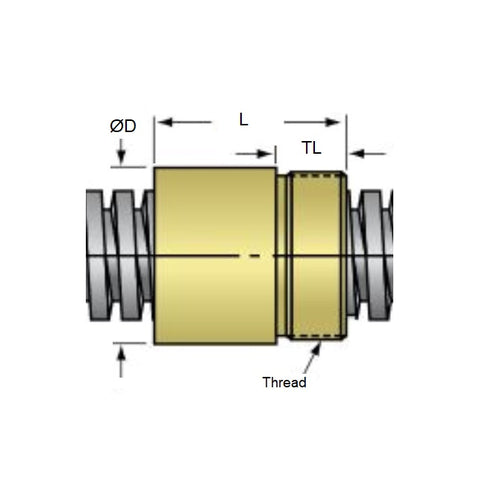

- Screw Outside Diameter
:
12.700
mm
(Equiv. 0.5 in.) - Number of Threads Per Inch 10
- Number of Starts 1
- Lead 2.54 mm
- External Thread 15/16-16
- Direction Right Hand
- Overall Length 19.05 mm
- Thread Length 12.70 mm
- Nut Diameter 28.45 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- AR-223
- AR223
