W0060-D-013-007-P - Datasheet
MBA
Category Information

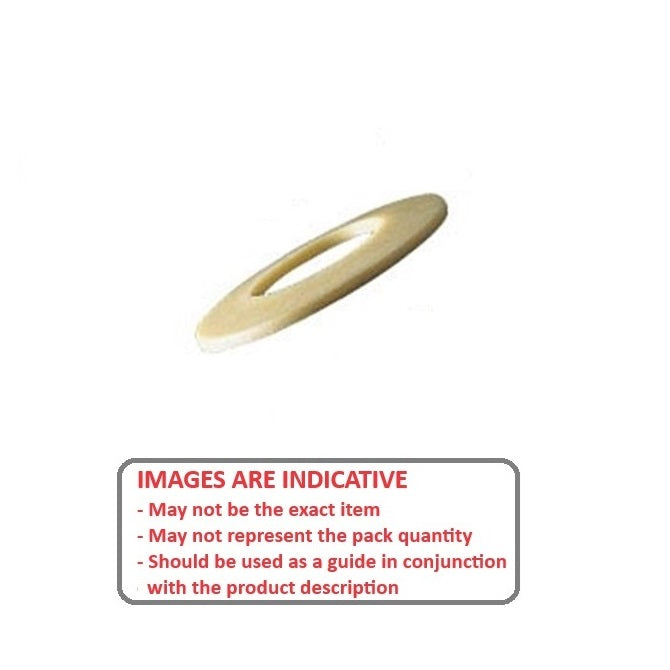

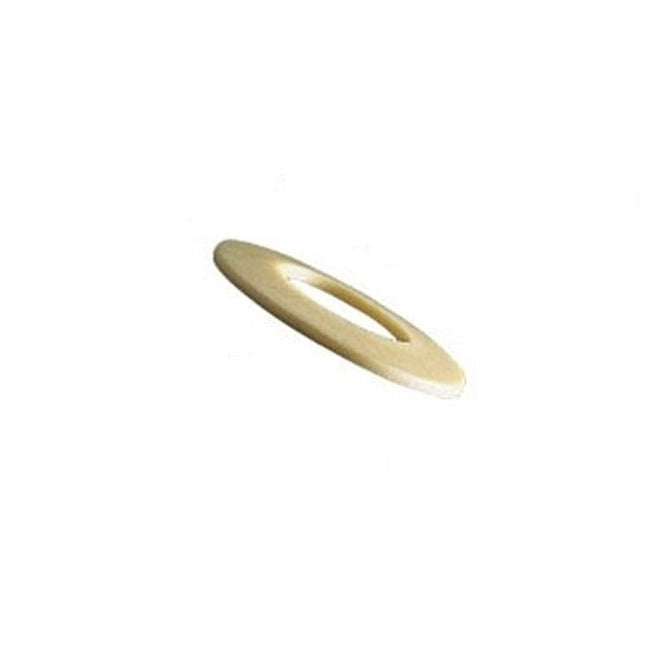

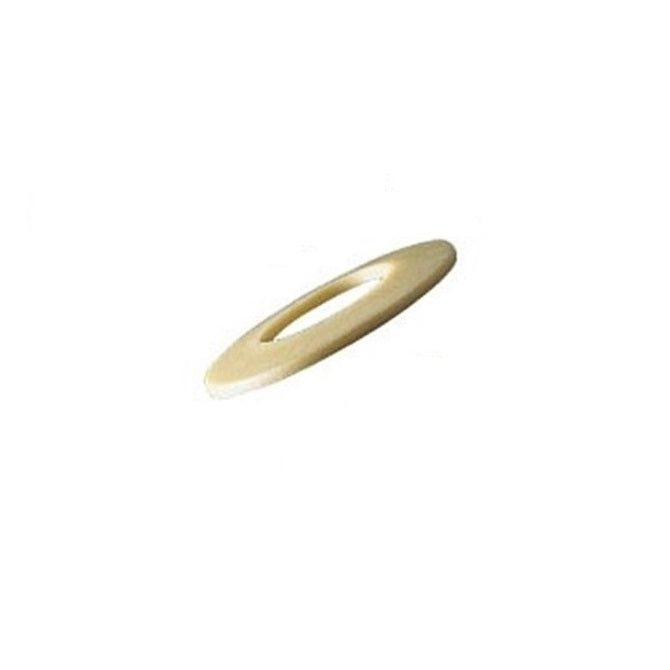

Washers - Disc Spring - Standard - PlasticPlastic Standard Disc Spring Washers. Not for constant spring forces or when high forces are needed.
- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Provides flat spring characteristics and compensates for axial clearances and tolerances. Electrical and thermal insulation.
- Non magnetic - Polysorb(R) material.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

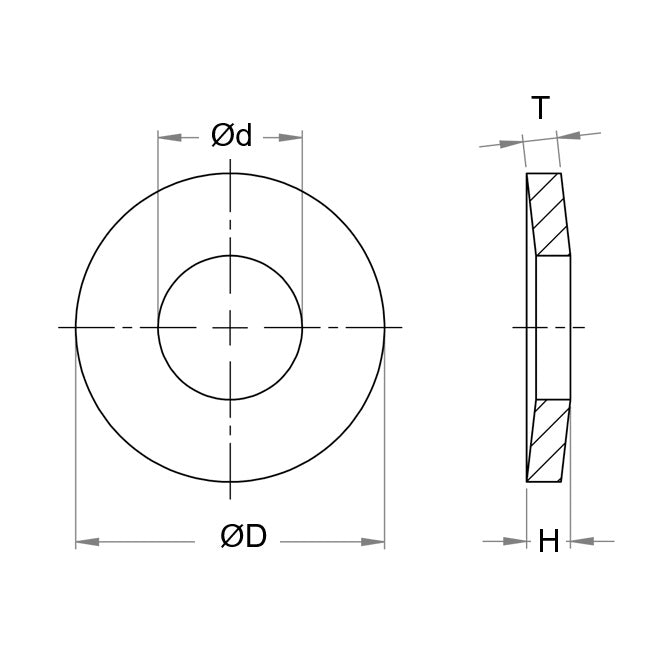

- Nominal Outside Diameter (A) : 12.50 mm
- Nominal Inside Diameter (B)
6.00
mm
+ 0.20 / - 0.00
(Equiv. 0.236 in.) - Thickness (t) 0.70 mm
- Free Height (ho) 0.30 mm
- Spring Force at 25 Percent 3.0 N
- Spring Force at 50 Percent 5.1 N
- Spring Force at 75 Percent 8.0 N
- Spring Force at 100 Percent 12.0 N
- Actual ID (Ref) 6.2 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 3573A15
- Igus® JTEM-06
- JTEM06
