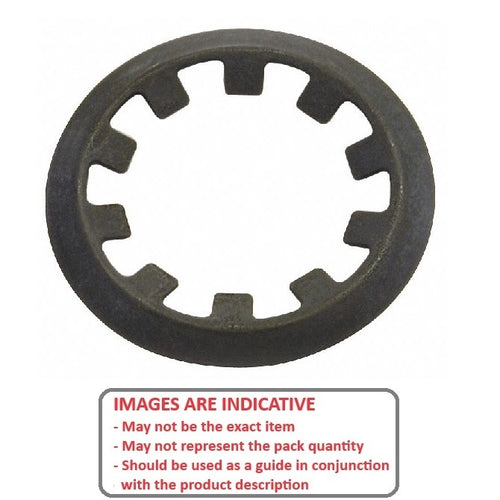

RPO-126-128-CZ - Datasheet
MBA
Category Information
Retaining Rings - Push On - Carbon SteelCarbon Steel Push On Retaining Rings. M1465 / DTX / Seeger ZA and KS.
- An expanded range may be available on special order. Please enquire.
- Thrust load shown is calculated for ideal conditions with mild steel shaft.
- If no thrust load is shown, testing is suggested.
Product Data
- Min shaft size (s1) : 12.57 mm
- Max Shaft Size (s2) 12.83 mm
- Outside diameter (D1) 21.00 mm
- Min shaft extension (n1) 2.29 mm
- Finish Zinc Plated
- Material Thickness (t) 0.38 mm
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Waldes® 5115-050-ZD
- Huyett® TX-050-ZD
- NoCor® TX-050-ZD
- Rotor Clip® TX-050-ZD
- TX050ZD
- N1465050ZD
- N1465-050-ZD
- 5115050ZD
