PWL-120-ST - Datasheet

MBA

Category Information

Ratchets and Pawls - Pawls

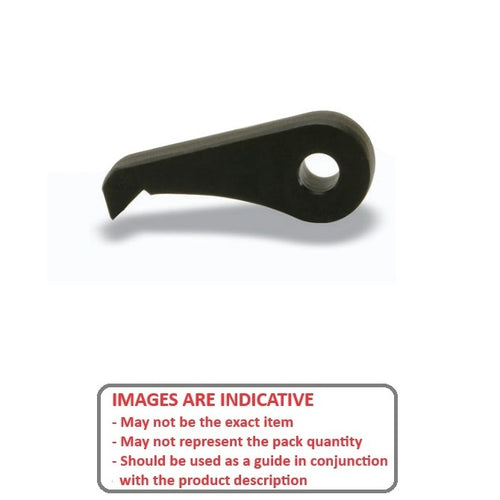

Pawls Ratchets and Pawls. Used with ratchets listed on this site.

  • An expanded range may be available on special order. Please enquire.

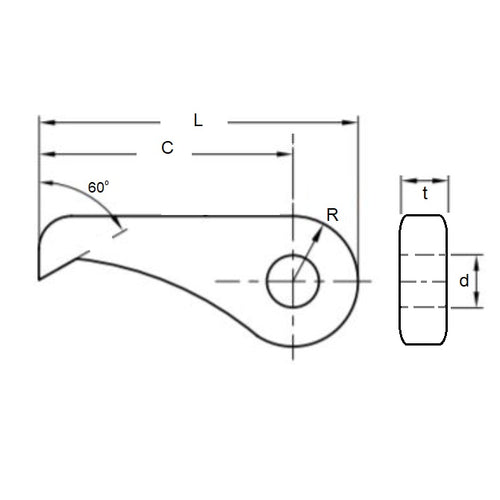

Product Data

  • Thickness (t) : 12 mm
    (Equiv. 0.472 in.)
  • Overall Length (L) 49 mm
    (Equiv. 1.929 in.)
  • Mounting Hole Diameter 8.00 mm H8
    (Equiv. 0.315 in.)
  • Swivel Radius (R) 10 mm
  • Hole Centre (c) 39
  • Type Type 2
  • Material Carbon Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • A1C14M13912
