Miniature Bearings Australia
NART12VUUR - Datasheet
MBA
Category Information

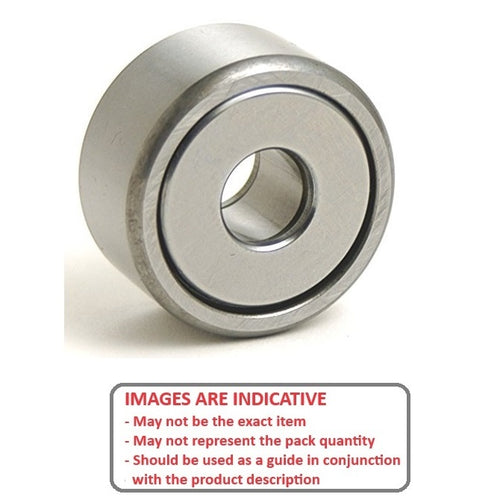

Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series

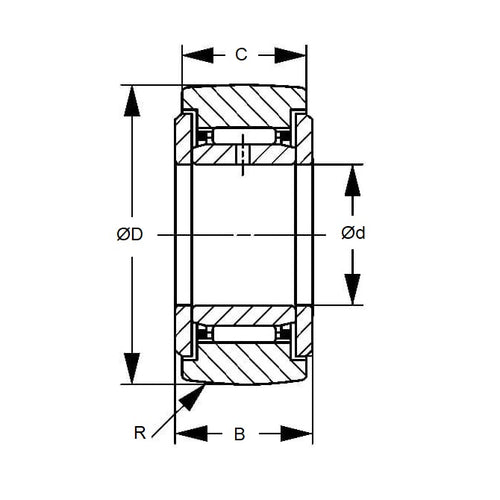

Product Data
- ID (d)
:
12.00
mm
(Equiv. 0.472 in.) - OD (D)
32.00
mm
(Equiv. 1.26 in.) - Width (C)
14.00
mm
(Equiv. 0.551 in.) - Inner Ring Width (B) 15.00 mm
- OD Type Radius (500mm)
- Dynamic Load Rating 1710.00 kgf
- Static Load Rating 2090.00 kgf
- Closures Shields with Seal
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi NART-12VUUR
- NART12VUUR
