Miniature Bearings Australia
NAST12R - Datasheet
MBA
Category Information

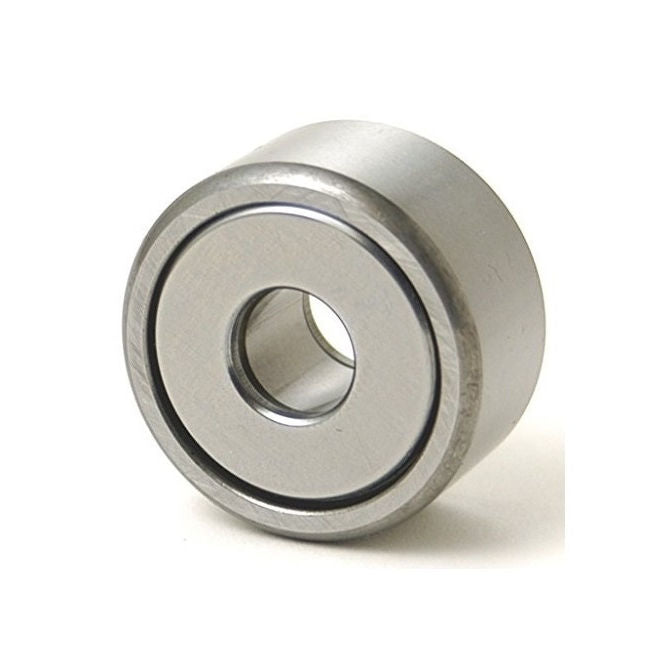

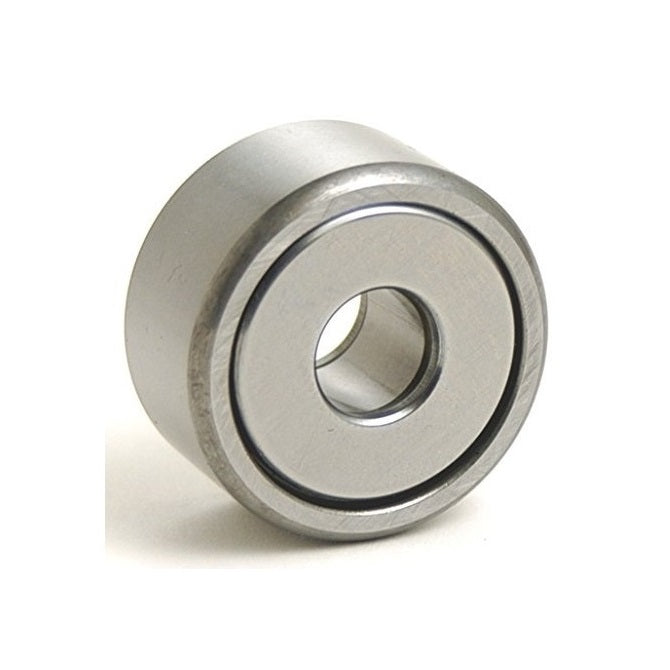

Rollers - Track - With Inner RaceWith Inner Race Track Rollers. This is the main category in this series
Product Data
- ID (d)
:
12.00
mm
(Equiv. 0.472 in.) - OD (D)
32.00
mm
(Equiv. 1.26 in.) - Width (C)
11.80
mm
(Equiv. 0.465 in.) - Inner Ring Width (B) 12.00 mm
- OD Type Radius (500mm)
- Dynamic Load Rating 1070.00 kgf
- Static Load Rating 1110.00 kgf
- Closures None
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi NAST-12R
- NAST12R
