6201-ZZ-NR-C3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - with Snap Ring - Standard - Chrome Steel

Chrome Steel Standard with Snap Ring Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring on the OD

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Single row radial ball bearings with snap ring.

Product Data

This bearing has a snap ring on the OD

  • ID (d) : 12.000 mm + 0.000 / - 0.0075
    (Equiv. 0.472 in.)
  • OD (D) 32.000 mm + 0.000 / - 0.011
    (Equiv. 1.26 in.)
  • Width (B) 10.000 mm + 0.000 / - 0.125
    (Equiv. 0.394 in.)
  • Groove Width (b) 1.350 mm
  • Closure Type Z
  • Bearing Type Radial with Snp Ring
  • Snap Ring Thickness 1.120 mm
  • Max. Dist. To Groove Edge 2.060 mm
  • Material Chrome Steel SAE 52100
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 6201
  • Limiting Speed 22000
  • Cage Type Standard
  • Static Load Rating KGf 313
  • Dynamic Load Rating KGf 693
  • Radii 0.60 mm
  • Inner Shoulder (UI) 18.50mm
  • Outer Shoulder (UO) 27.95 mm
  • Number of Balls 7
  • Clearance C3 (11 to 25)
  • Precision Grade Abec 1
  • Closure Type ZZ
  • Max Temperature 120 Deg. C
Country of Origin: JP

Product Compliance and Data

Additional Resources

View full details

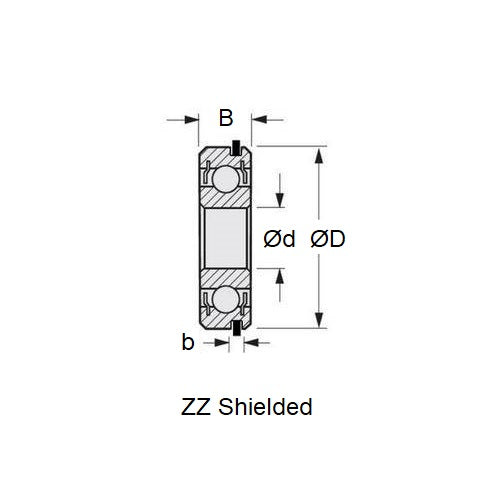

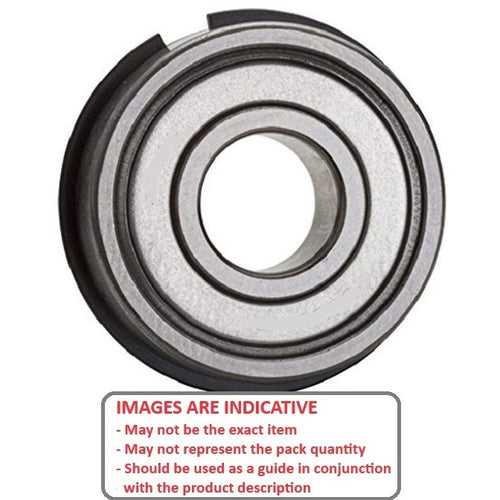

6201-ZZ-NR-C3Diagram6201-ZZ-NR-C3Image
