CP-123-445-76-005-R1-SC - Datasheet

MBA

Category Information

Couplings - Rigid - Clamp - 1 Piece - Steel

Steel 1 Piece Clamp Rigid Couplings. 12L14 Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Bore (b1) : Pilot Bore 12.319 mm
  • Bore (b2) 44.450 mm
    (Equiv. 1.75 in.)
  • OD (D) 76.200 mm
    (Equiv. 3 in.)
  • Length (L) 114.300 mm
  • Screw 5/16-24 x 22.22 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • CC159
    • CC-159
    View full details

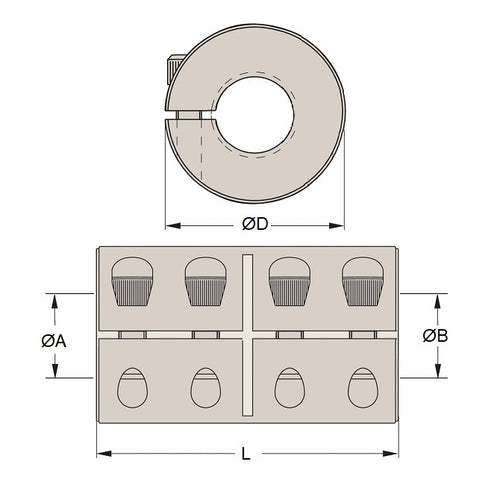

    CP-123-445-76-005-R1-SCDiagramCP-123-445-76-005-R1-SCImage
