FL-12-W300 - Datasheet
MBA
Category Information

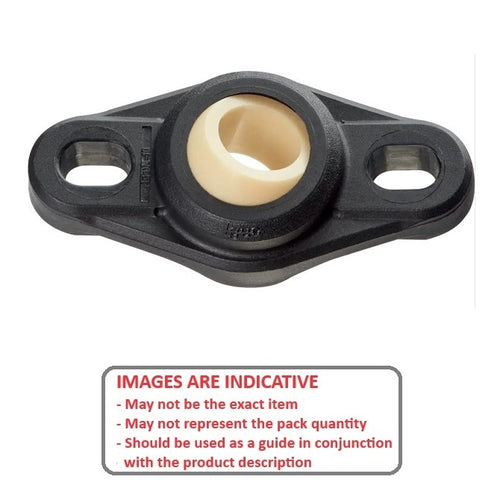

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - W300W300 Aligning Flanged 2 Bolt Housing and Bearing Assembly. With integral self aligning plain bearing.
- Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
- Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.
- Housing: Igumid G.
- Ball: Highly wear resistant Iglidur W300.
Product Data

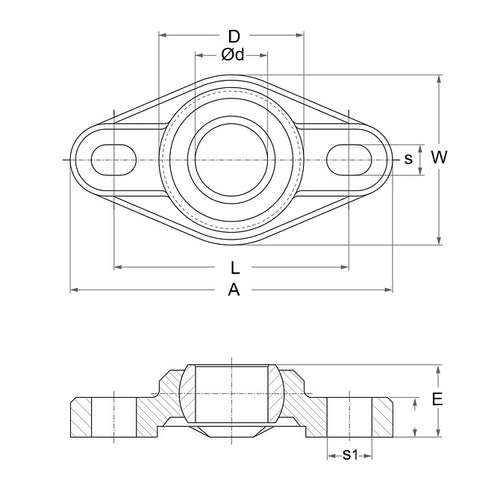

- Nominal Shaft Size : 12.00 mm
- Overall Length (A) 41.000 mm
- Overall Height (E) 13.000 mm
- Min to Max Shaft Dia. 21 mm
- Base Height (D) 7.000 mm
- Bolt Hole Size (s) 5.3 x 8.0 mm
- Bolt Hole Centres (L) 31.000 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus® EFOM-12
- Reid Tool® I-705
- I705
- EFOM12
