COL-01200-022-08-NY - Datasheet
MBA
Category Information

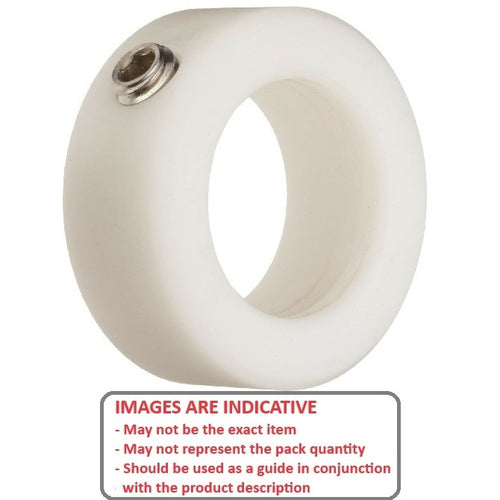

Collars - Shaft - Standard - NylonNylon Standard Shaft Collars. Standard one piece nylon shaft collar with set screw
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
12.000
mm
+ 0.000 / + 0.027
(Equiv. 0.472 in.) - Outside Diameter (D)
22.00
mm
(Equiv. 0.866 in.) - Overall Width (S)
8.0
mm
(Equiv. 0.315 in.) - Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- COL0120002222NY
