Miniature Bearings Australia
BFM-12M-N - Datasheet
MBA
Category Information

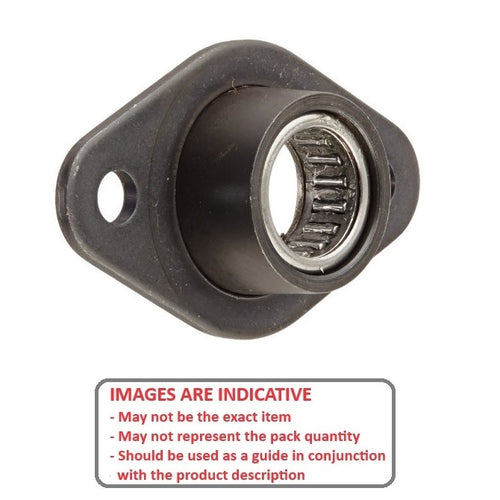

Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle RollerNeedle Roller Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted needle roller bearings
- An expanded range may be available on special order. Please enquire.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
12.000
mm

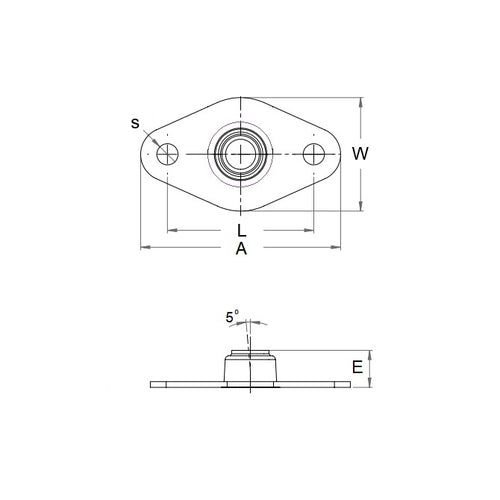

(Equiv. 0.472 in.) - Width (W)
60.00
mm
(Equiv. 2.362 in.) - Overall Length (A)
28.00
mm
(Equiv. 1.102 in.) - Overall Height (E) 39.60 mm
- Min to Max Shaft Dia. 11.989 to 12.000 mm
- Max. Radial Dynamic Load 4950 N
- Bolt Hole Centres (L) 45.20 mm
- Max Speed 20000
- Material Steel
