BFM-12M-HT - Datasheet
MBA
Category Information

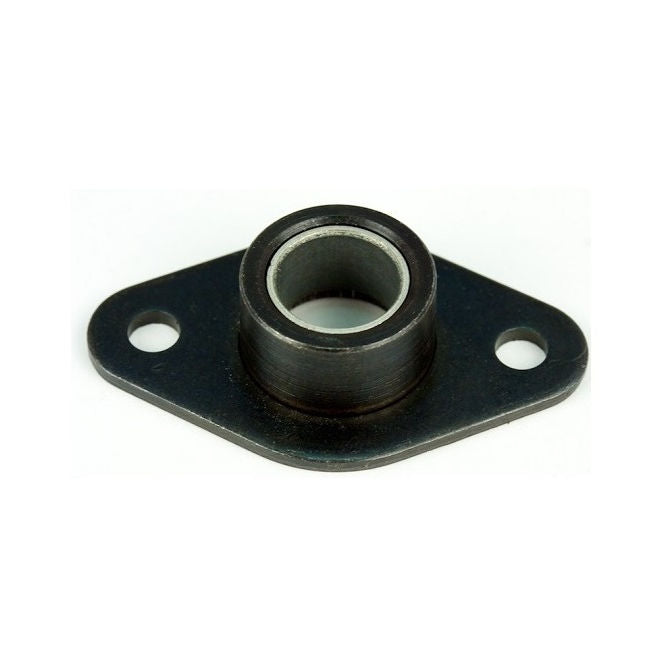

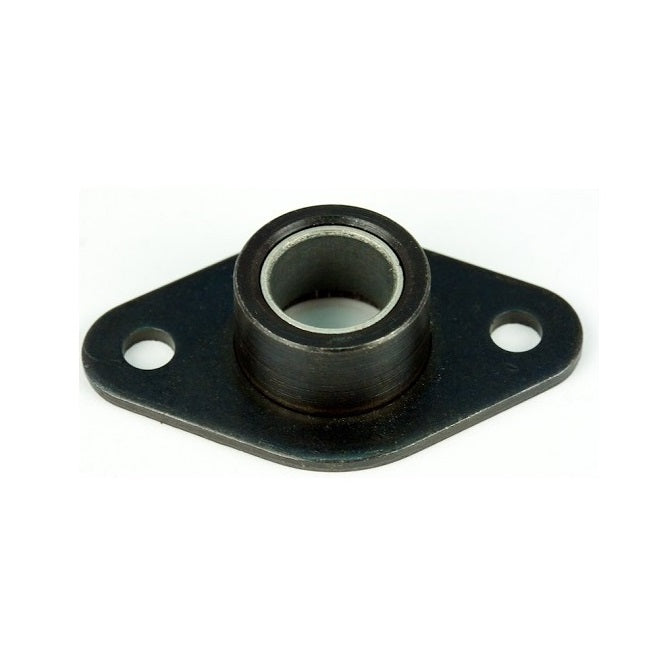

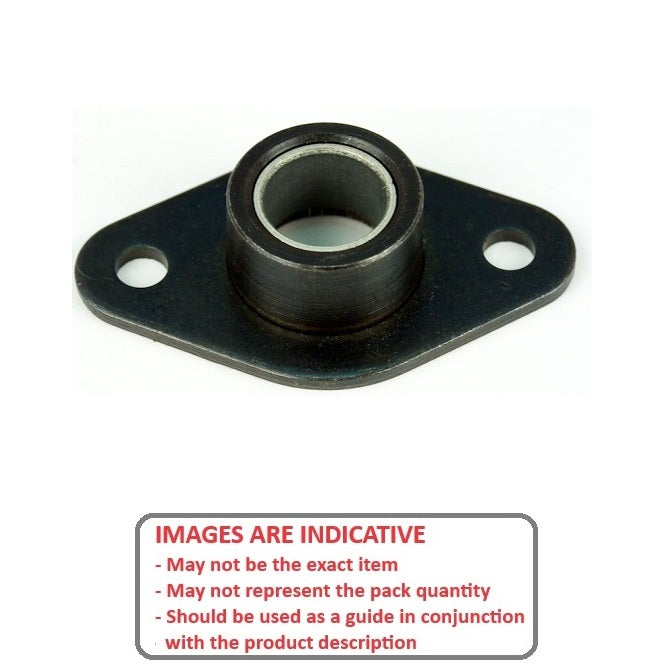

Housing Assembly - Flanged 2 Bolt - Self Aligning - PTFE BronzePTFE Bronze Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted PTFE bronze bearings
- An expanded range may be available on special order. Please enquire.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Shaft Size
:
12.000
mm
(Equiv. 0.472 in.) - Width (W)
60.00
mm
(Equiv. 2.362 in.) - Overall Length (A)
22.00
mm
(Equiv. 0.866 in.) - Overall Height (E) 36.50 mm
- Min to Max Shaft Dia. 11.966 to 11.984 mm
- Max. Radial Dynamic Load 2550 N
- Bolt Hole Centres (L) 45.20 mm
- Max Speed 3181
- Material PTFE Impregnated Bronze - High Temperature
