SHLD120-020-PH-S3 - Datasheet

MBA

Category Information

Screws - Shoulder - Phillips - Stainless

Stainless Phillips Shoulder Screws. 303 Stainless Steel

  • Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw

Product Data

  • Shoulder Diameter (D1) : 12.000 mm - 0.013 / - 0.038
    (Equiv. 0.472 in.)
  • Shoulder Length (A) 20.000 mm + 0.013 / + 0.063
    (Equiv. 0.787 in.)
  • Thread (D) M10x1.5
  • Max. Thread Length (l) 16.00 mm
  • Head Height (H) 8.00 mm
  • Head Diameter (D) 20.00 mm
  • Phillips Drive
  • Philips Size 3
  • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • S706Y3MA020
View full details

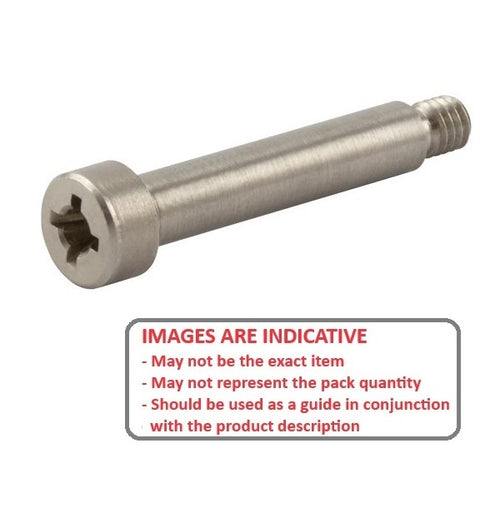

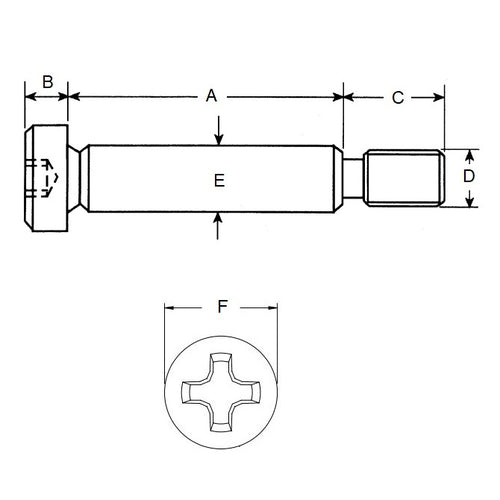

SHLD120-020-PH-S3DiagramSHLD120-020-PH-S3Image
