W0120-LK-020-020-LR-S6 - Datasheet
MBA
Category Information

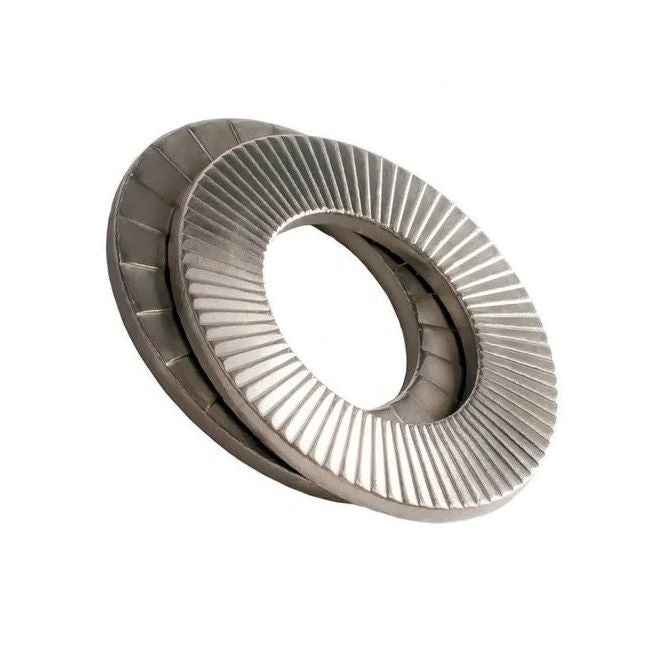

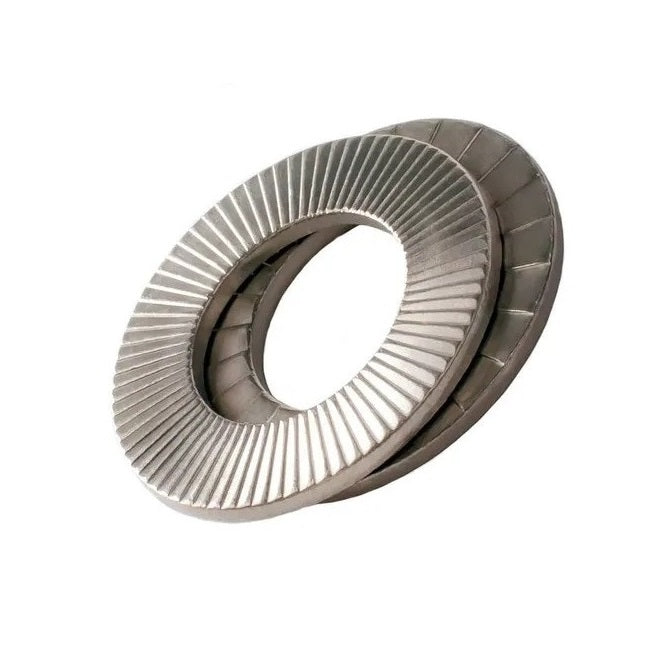

Washers - LockRite - 316 Stainless Steel316 Stainless Steel LockRite Washers. 316 stainless steel selection.
- LockRite© washers offer resistance to self loosening during vibration & fluctuating loads. An expanded range may be available on special order. Please enquire.
- They wedge each other and lock themselves, utilizing tension leading to a secure bolted joint.
- Supplied in pairs. Assembled in pairs, cam face to cam face.
- Locking function not affected by lubrication. Eliminates the need for adhesives. Reusable.
- Can be used with fasteners up to grade 12.9.
Product Data
- Nominal Inside Diameter (d1)
:
12.0
mm
(Equiv. 0.472 in.) - Nominal Outside Diameter (D)
19.6
mm
(Equiv. 0.772 in.) - Thickness (t) Per Pair - 2.0 mm
- Sold per pair mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1060302
