P-030H-011-075C - Datasheet
MBA
Category Information

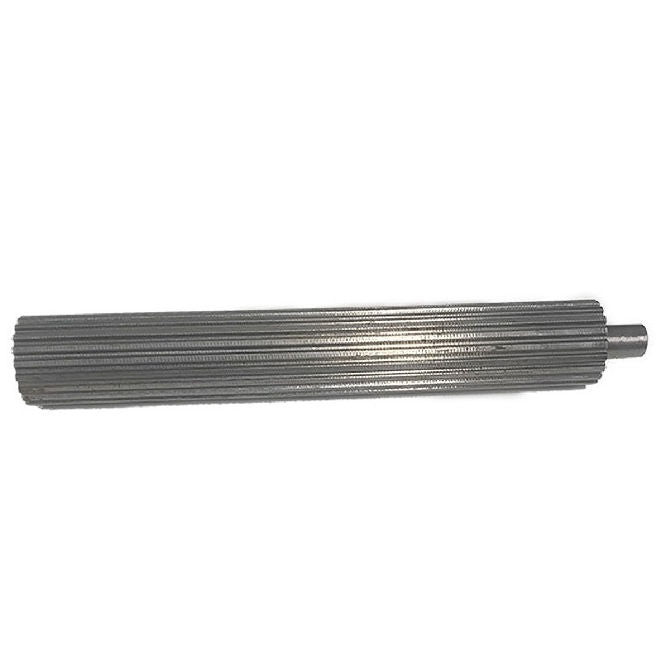

Pulleys - Metric Timing Stock - 3.000mm Pitch - HTD - Carbon SteelCarbon Steel HTD 3.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 11
- Min. Usable Length (L)
75.0
mm
(Equiv. 2.953 in.) - Pitch Diameter (PD)
10.50
mm
(Equiv. 0.413 in.) - Outside Diameter (OD) 9.74 mm
- Shank Diameter (D1) 9.50 mm
- Shank Length (Sl) 25.0 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 11-3M-PS3S
- 113MPS3S
- A6C22M011TM08
