LYP-CLK-110-045-MZ - Datasheet
MBA
Category Information

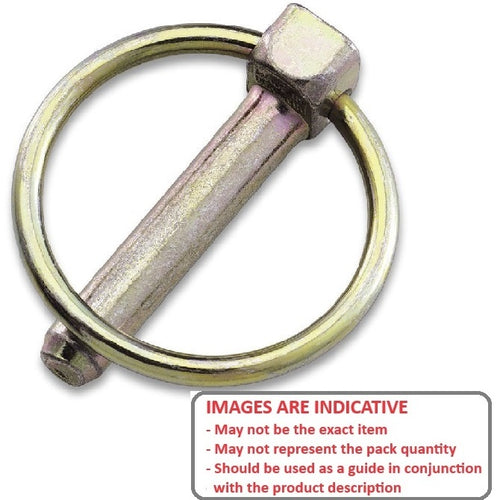

Pins - Clik - Mild SteelMild Steel Clik Pins. Self locking ring snaps down to hold them securely in place. Easy grip ring for quick removal. Also known as a lynch pin.
- Pin is made from carbon steel and heat treated to RA 50-60.
- Ring is hot drawn spring steel with hardness of RC 47-48.
- Zinc plated.

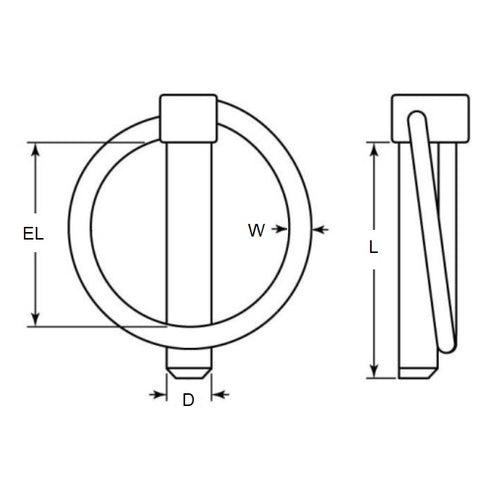

Product Data
- Pin Diameter
:
11.00
mm
(Equiv. 0.433 in.) - Grip Length
45.0
mm
(Equiv. 1.772 in.) - Wire Thickness
3.5
mm
(Equiv. 0.138 in.) - Overall Length 60 mm
- Finish Zinc Plated
- Material Steel - Mild Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Hitech LPYP1150
