Miniature Bearings Australia
MR2111-T9H-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - High Speed CageHigh Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings in this group have various types of high speed cages.
- Speed ratings range from 20 percent to 80 percent increase on standard cage types.
- See individual datasheets, available on request.
- Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
- This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid
Product Data

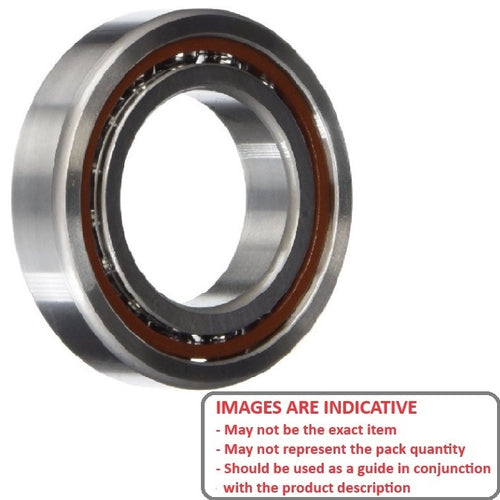

Open economy bearing with a high speed polyamide retainer
- ID (d) : 11.000 mm
- O.D. (D) 21.000 mm
- Width (B) 5.000 mm
- Precision Grade Economy
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR2111
- Limiting Speed 27550
- Cage Type Polyamide
- Static Load Rating KGf 77.9
- Dynamic Load Rating KGf 166.2
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
