2R-0110-0180-0300-KS6U - Datasheet
ExaktKey
Category Information

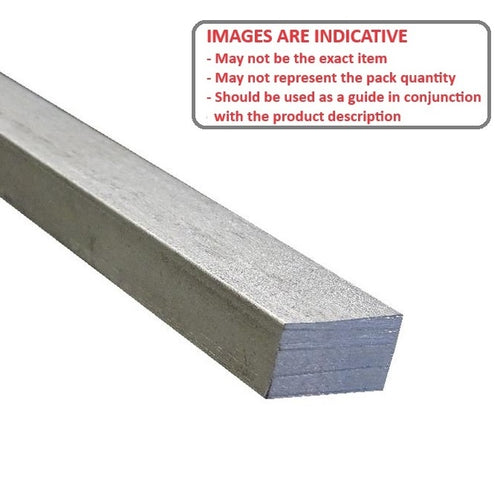

Keysteel Lengths - Rectangular - Stainless SteelStainless Steel Rectangular Keysteel Lengths. 303, 304 and 316 key steel. Rectangular stainless steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
Product Data
- Width (s1)
:
11.000
mm
+ 0 / - 0.051
(Equiv. 0.433 in.) - Height (s2)
18.000
mm
+ 0 / - 0.102
(Equiv. 0.709 in.) - Length (L)
300
mm
+/- 3.2
(Equiv. 11.811 in.) - Tolerance Type Standard Undersized
- Red End Colour Code
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- NoCor 801811-305
- 90457A177
- KS-1811SS
- KS1811SS
- 801811305
