ECL-0100-0110-C - Datasheet
MBA
Category Information

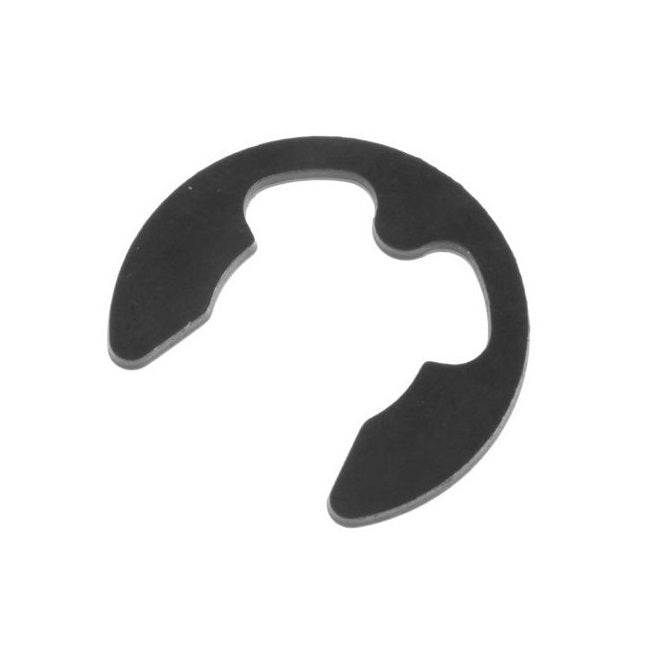

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
11.00
mm
+ 4.00 / - 0.00
(Equiv. 0.433 in.) - Groove Dia. (Dg)
10.00
mm
+ 0.00 / - 0.09
(Equiv. 0.394 in.) - Clip Thickness (T)
1.20
mm
+/ - 0.03
(Equiv. 0.047 in.) - Clip OD Loose (D1) 19.65 mm
- Groove Width (W) 1.25 mm
- Maximum Rec. Shaft Dia (S) 15.00
- Clip OD in groove (C1) 20.40 mm
- Loose Clip ID (A) 8.32 mm
- Min. Extension (n) 2.00
- Standard DIN6799
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98543A218
- NoCor DE-100
- Cirteq RA10.0
- 1500-0100
- 15000100
- D1500-0100
- D15000100
- DE100
