Category Information

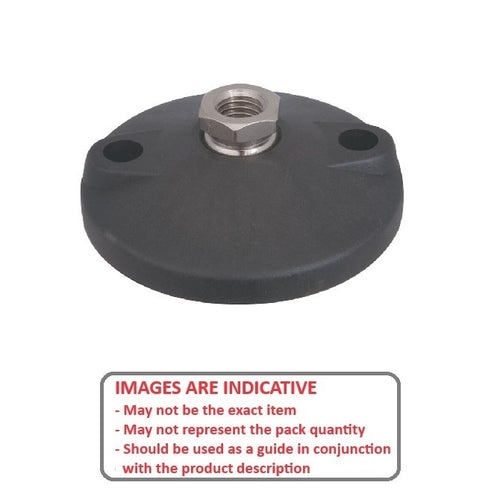

Mounts - Levelling Socket - Standard - Nylon - With Lag HolesWith Lag Holes Nylon Standard Levelling Socket Mounts. Levelling adjusters. Steel and stainless steel threads.
- An expanded range may be available on special order. Please enquire.

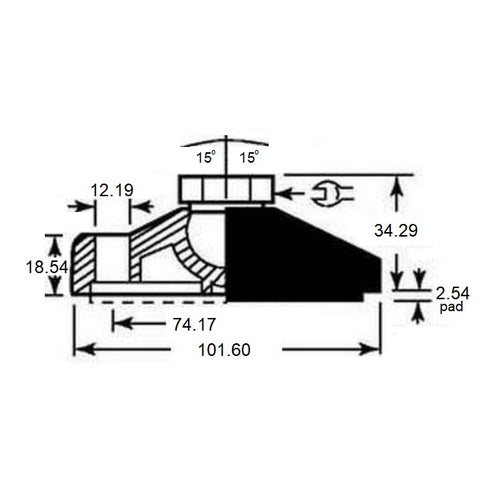

Product Data
- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
101.6
mm
(Equiv. 4 in.) - Foot Height (C)
18.5
mm
(Equiv. 0.728 in.) - Overall Height 34.29 mm
- Load Rating 1180 Kg
- Lag Hole Diameter 12.192 mm
- Distance Between Lags 73.91 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 60985K68
- MLF1180191CNS32
- RL-3115-S
- RL3115S
