MLF-159C-S3NY-0LH - Datasheet
MBA
Category Information

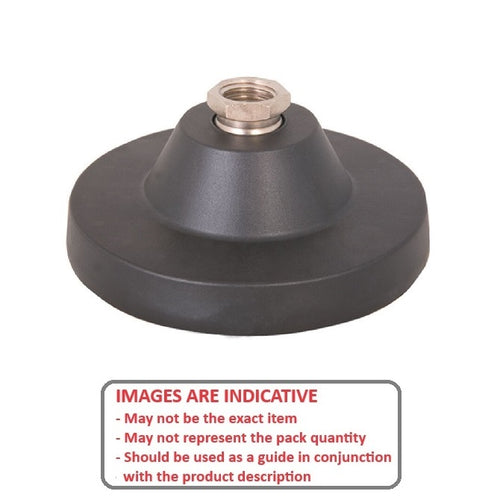

Mounts - Levelling Socket - Standard - Nylon - No Lag HolesNo Lag Holes Nylon Standard Levelling Socket Mounts. Levelling adjusters. Steel and stainless steel socket internal threads. Use your own custom thread length.
- An expanded range may be available on special order. Please enquire.
Product Data

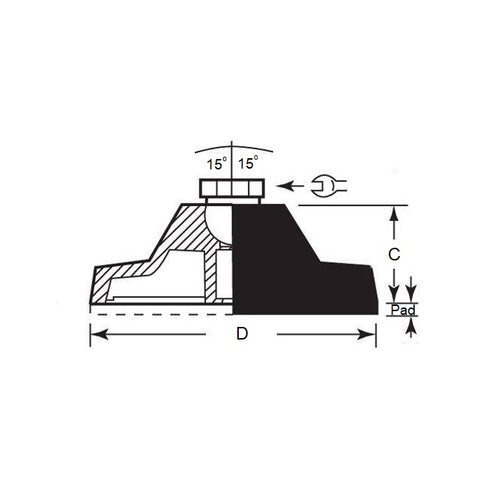

- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Base Diameter (D)
101.6
mm
(Equiv. 4 in.) - Foot Height (C)
18.5
mm
(Equiv. 0.728 in.) - Overall Height 34.29 mm
- Load Rating 1170 Kg
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- MLF1170159CNS3
- MLF0034159CNS3
- RL-2910-S
- RL2910S
