MLF-191C-S3NY-0LH-102 - Datasheet

MBA

Category Information

Mounts - Levelling Socket - Standard - Nylon - No Lag Holes

No Lag Holes Nylon Standard Levelling Socket Mounts. Levelling adjusters. Steel and stainless steel socket internal threads. Use your own custom thread length.

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size (A) : 3/4-10 UNC (19.05mm)
  • Base Diameter (D) 101.6 mm
  • Foot Height (C) 18.5 mm
  • Overall Height 34.29 mm
  • Load Rating 1170 Kg
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® RL-2915-S
    • RL2915S
    • MLF1170191CNS3
    • MLF0034191CNS3
    View full details

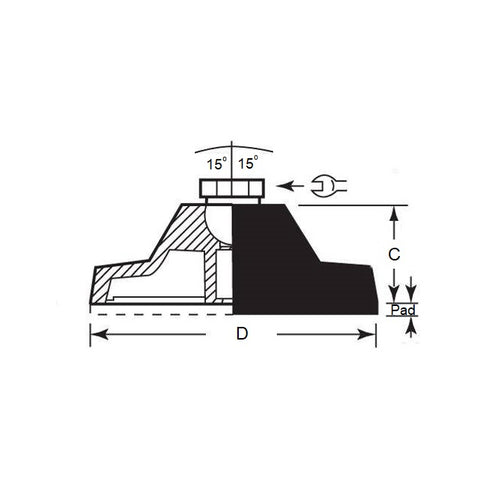

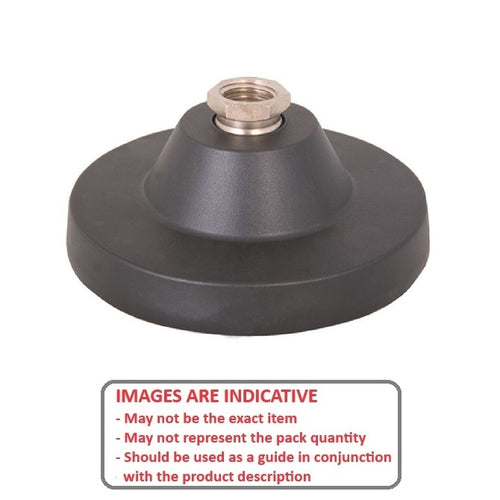

    MLF-191C-S3NY-0LH-102DiagramMLF-191C-S3NY-0LH-102Image
