Miniature Bearings Australia
MCOM-0118-102 - Datasheet
MBA
Category Information

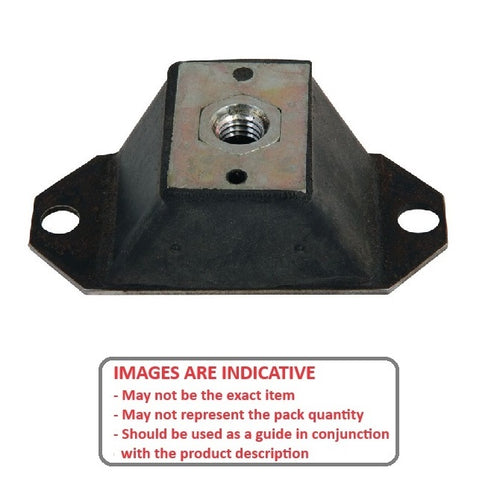

Mounts - CompressionCompression Mounts. Used for vertically applied loads to prevent the transmission of noise and vibration caused by rotation of unbalanced equipment.
- Used for vertically applied loads to prevent the transmission of noise and vibration caused by rotation of unbalanced equipment.
- Made with durable oil and ozone resistant neoprene. No special tools required for installation.
- Made with durable oil and ozone resistant neoprene. No special tools required for installation.
Product Data

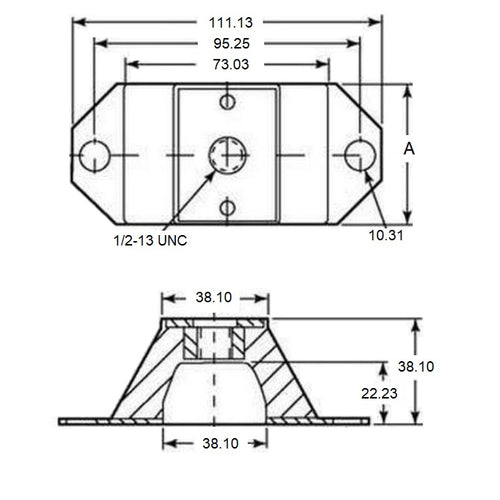

- Load Range : 117.934 Kg
- Width (A) 101.600 mm
- Overall Length 111.125 mm
- Height 38.100 mm
- Thread 1/2-13 UNC (12.700mm)
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® BCM-260
- BCM260
