Miniature Bearings Australia
OR-11684-699-S70-426-R - Datasheet
MBA
Category Information

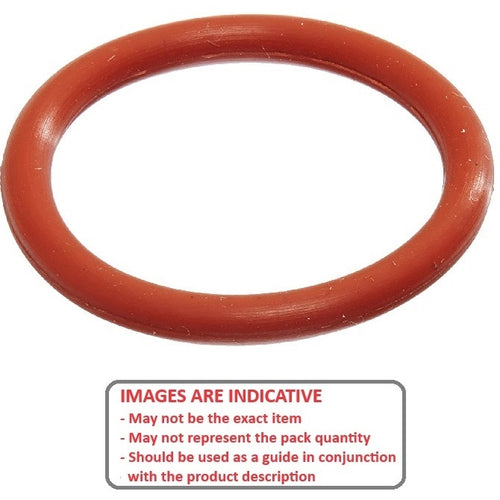

O-Rings - Silicone RubberSilicone Rubber O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food appliactions.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance.
- Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
Product Data
- Inside Diameter (ID)
:
116.84
mm
(Equiv. 4.6 in.) - Section (t)
6.99
mm
(Equiv. 0.275 in.) - Colour Red
- Hardness Duro 70
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- 1283N368
- BS426SIL70
- BS426-SIL70
- BS426SIL70RED
- BS426-SIL70-RED
