Miniature Bearings Australia
0T-1100-0572-0165-SB - Datasheet
MBA
Category Information

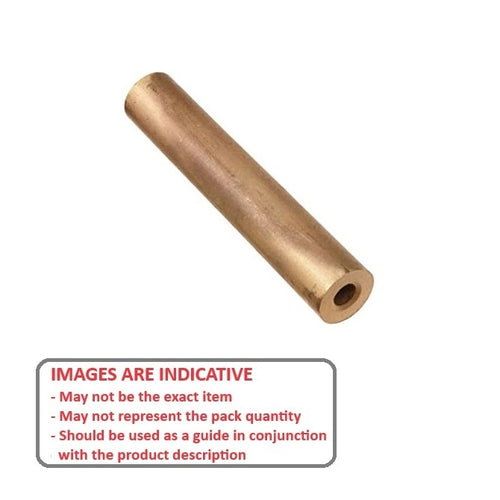

Tube - Round - Sintered BronzeSintered Bronze Round Tube. Oil impregnated sintered bronze tubing - self lubricating. Product will machine to the sizes listed and is supplied will be larger on OD and smaller on bore.
- Sizes listed are FINISHED SIZE. Product supplied will be larger on OD and smaller on ID to allow for machining.
- B438 grade 1, Type 2 - AMS4805-D
- SAE 841 Type 1, Class A
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Outside Diameter
:
110.00
mm
+ 0.80 / + 3.20
(Equiv. 4.331 in.) - Nominal Inside Diameter
57.15
mm
- 0.80 / - 3.20
(Equiv. 2.25 in.) - Length (L)
165.1
mm
(Equiv. 6.5 in.) - Info This is 4.5 inch OD with a small dent. Suitable to machine to 110mm or less
- Material Bronze SAE 841 Sintered
Product Compliance and Data
Additional Resources
