SKF-81RS - Datasheet

MBA

Category Information

Turntable - Non-Lockable

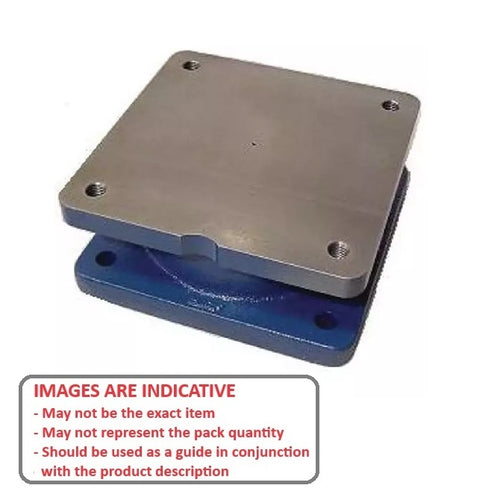

Non-Lockable Turntable. Similar to lazy susans but heavy duty.

  • Heavy duty turntables engineered for safe, smooth, long-lasting operation.
  • For industrial work stations, product displays, material container. stands, paint booths and welding tables.
  • All turntables are fitted with permanently lubricated and sealed bearings, eliminating the need for future re-lubrication.
  • Turntables may be mounted using the recommended bolts or welded directly to the fixture. The bottom flange is to be fastened first with standard size bolts. Top plates feature tapped holes to provide ease of assembly.

Product Data

  • Load Capacity : 1130 Kg

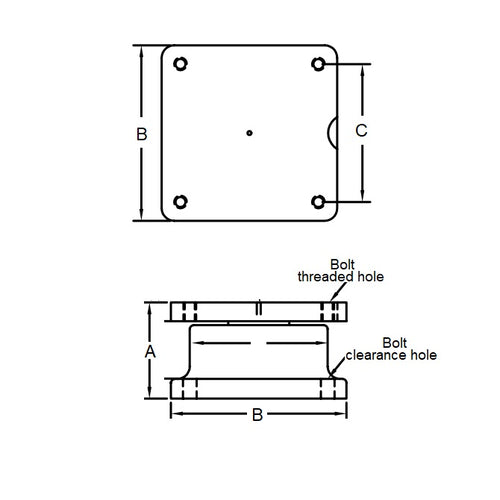

  • Height (A) 48.768 mm
    (Equiv. 1.92 in.)
  • Length (B) 88.90 mm
    (Equiv. 3.5 in.)
  • Bolt Centres (C) 69.85 mm
  • Bolt Size 1/4-20 UNC (6.35mm)
  • Material Cast Iron
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • SKF UT-02-NONLOCKING
    • UT02NONLOCKING
