P-050G-112-150P-CB-T2012 - Datasheet
MBA
Category Information

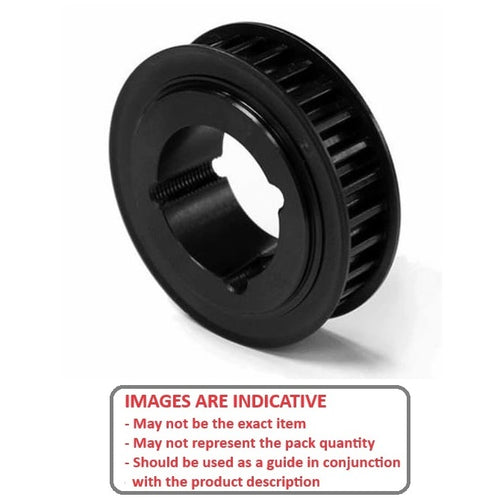

Pulleys - Metric Timing - 5.000mm Pitch - GT - 15mm Wide - TaperlockTaperlock 15mm Wide GT 5.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit GT 5.000mm Pitch Timing Belts. Suits belts 15mm wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Cast iron with black oxide coating
- Match with a taperlock bush for your required shaft size

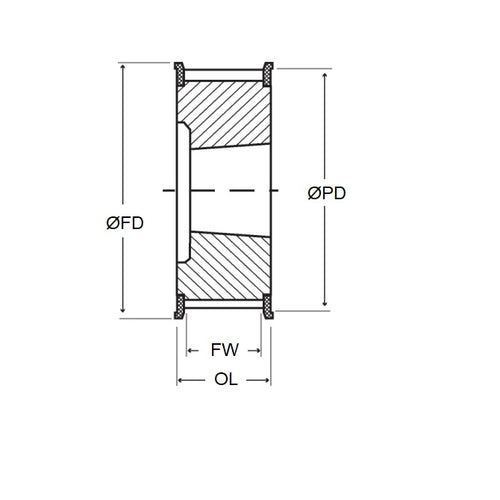

Product Data
- Number of Teeth : 112
- Max Belt Width
15.00
mm
(Equiv. 0.591 in.) - Bore (d) Determined by Taperlock Series
- Bore Type Suits Taperlock 2012
- Type 3
- Pitch Dia. (D) 178.17 mm
- Overall Length 31.8 mm
- Material Cast Iron
Product Compliance and Data
Additional Resources
Cross References
- Gates 112-5P15-2012
- 1125P152012
