Miniature Bearings Australia
BD-L9-0112-0127-NFB - Datasheet
MBA
Category Information

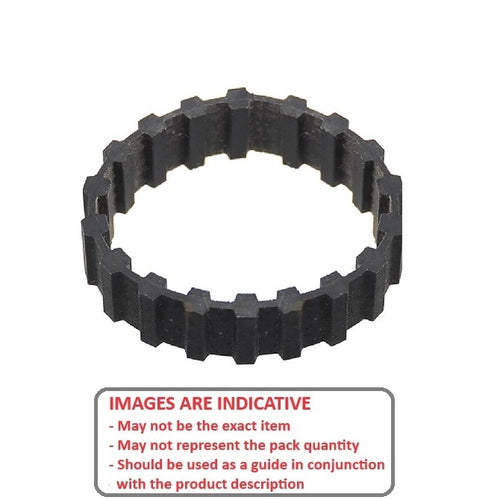

Belts - Inch Timing - 9.525mm Pitch L - 12.7mm Wide - Double SidedDouble Sided 12.7mm Wide 9.525mm Pitch L Inch Timing Belts. Standard Series Timing Belts 9.525mm or 0.375 inch pitch - Double Sided.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

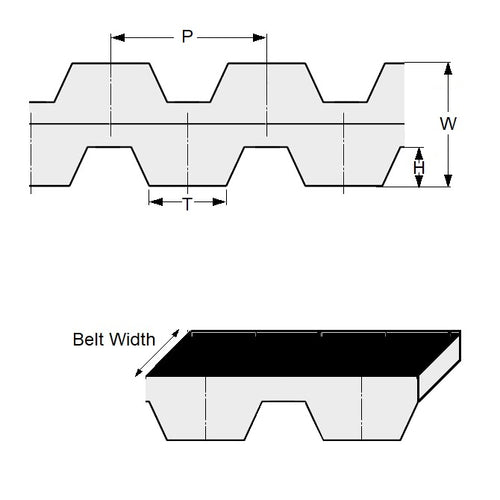

- Tooth Length (T) - 3.25mm
- Tooth Height (H) - 1.90mm
- Belt Height (W) - 4.6mm - Corner Radii ( r ) - 0.5mm
- Pitch (P) - 9.525mm (0.375 inch)
Product Data
- Number of Teeth : 112
- Length
1066.8
mm
(Equiv. 42 in.) - Width
12.7
mm
(Equiv. 0.5 in.) - Reinforcement Fibreglass
- Appearance Black
- Breaking Strength 2222 N
- Min Temperature (C) -34 Deg C
- Max Temperature (C) 85 Deg C
- Tooth Angle (A) 40 °
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates 420DL050
- 7891K66
- A6R4MD112125
- A6R4D112050
- A6R4-D112050
