FB204PE - Datasheet
MBA
Category Information

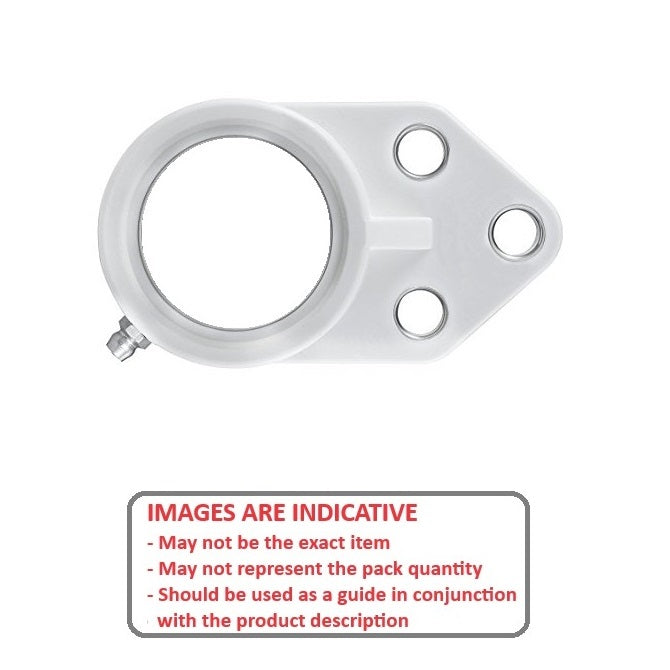

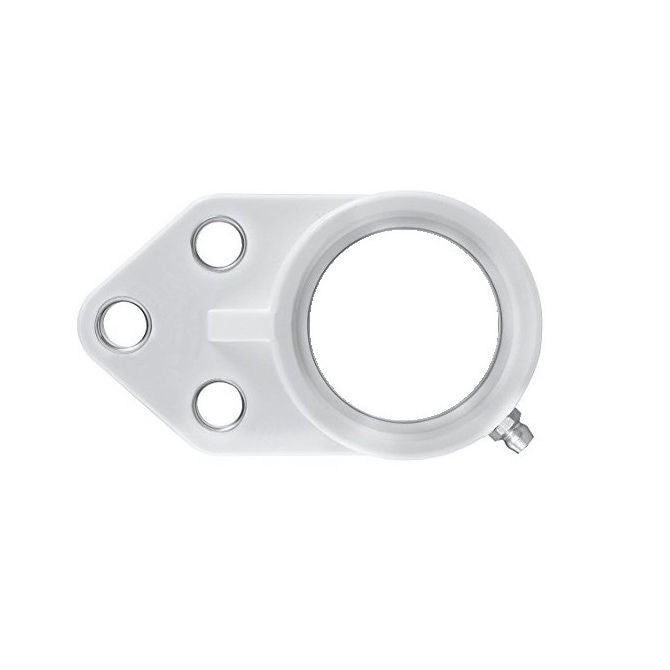

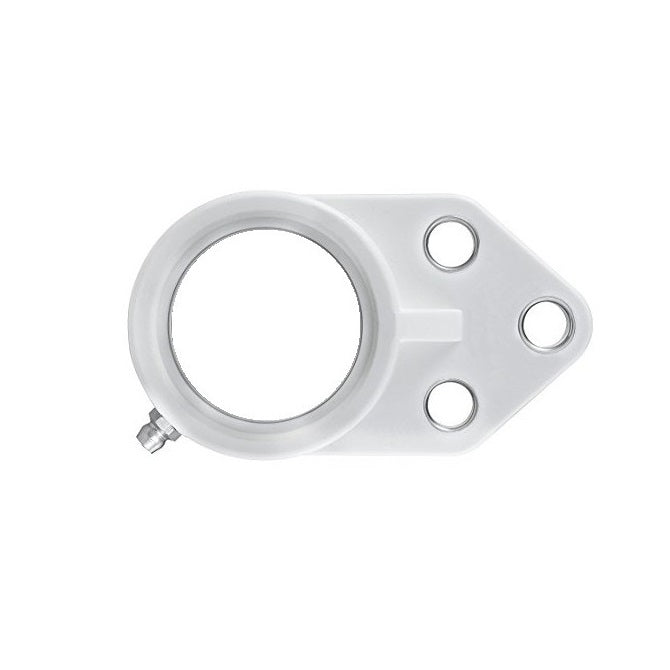

Housings - Flanged 3 Bolt Bracket PlasticFlanged 3 Bolt Bracket Plastic Housings. Load and speed capability depend on the bearing used.
- An expanded range may be available on special order. Please enquire.
- Use with steel bearing inserts for plastic housings.

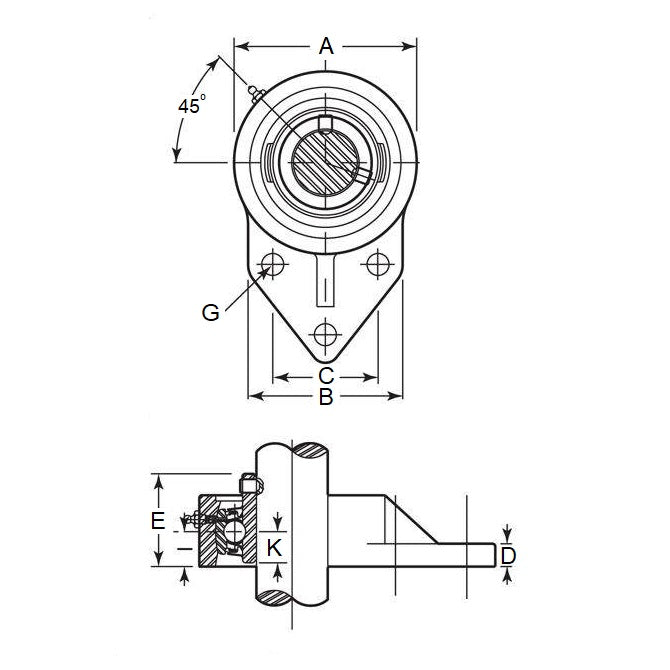

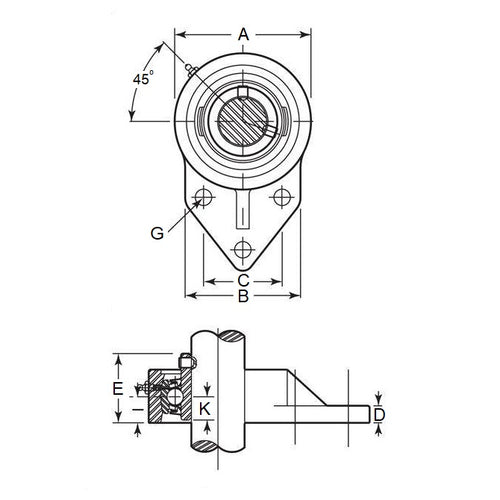

Product Data
- Height (H)
:
110
mm
(Equiv. 4.331 in.) - Bolt Centres to Brg Centre (h)
42
mm
(Equiv. 1.654 in.) - Bolt Hole Centres (e)
32
mm
(Equiv. 1.26 in.) - Bolt Hole Centres (j) 27 mm
- Base to Bearing Centre (i) 15 mm
- Base Thickness (g) 13 mm
- To Suit Bearing UC204 - S6-UC204 - S440-UC204
- Bolt Hole Size 5/16 Inch mm
- Overall Thickness No Brg (l) 25.5 mm
- Overall Width (b) 62 mm
- Material Polyethylene
