MLM-095C-102-CNP-I - Datasheet

MBA

Category Information

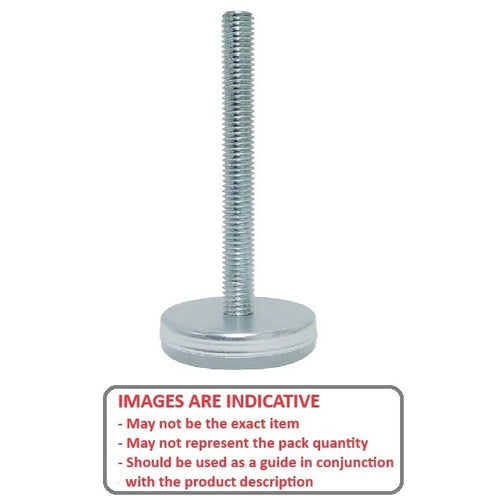

Mounts - Levelling Studded - Industrial - Nylon Padded - Steel

Steel Nylon Padded Industrial Levelling Studded Mounts. Levelling adjusters. These industrial glides are an excellent and inexpensive solution for light duty applications such as office furniture, shelving, point of sale displays, cabinetry and small machinery.

An expanded range may be available on special order. Please enquire.
Clear zinc plated steel
Nylon pad for glide applications.

Product Data

Thread Size (A) : 3/8-16 UNC (9.53mm)
Base Diameter (D) 61.0 mm
(Equiv. 2.402 in.)
Thread Length (F) 101.6 mm
Base Height (E) 25.4 mm
Overall Height (L) 127.00 mm
Load Rating 110 Kg
Finish Clear Zinc
Pad Material Nylon
Material Steel

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Measuring Small Parts
Metalworking Resource Guide

Cross References

GL35
GL-35
MLM0110127CCNB
MLM0110095CCNC
