MLM-064C-032-S3NP-I - Datasheet

MBA

Category Information

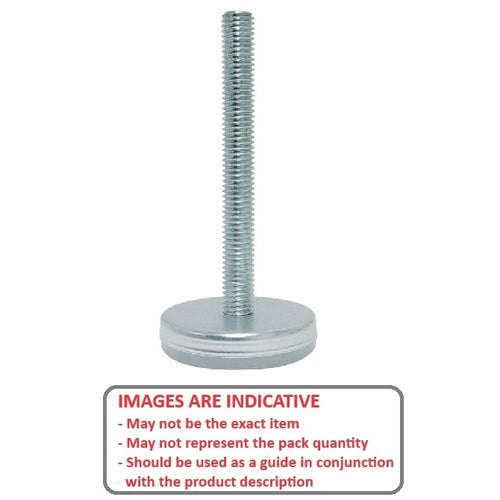

Mounts - Levelling Studded - Industrial - Nylon Padded - 303 Stainless

303 Stainless Nylon Padded Industrial Levelling Studded Mounts. Levelling adjusters. These industrial glides are an excellent and inexpensive solution for light duty applications such as office furniture, shelving, point of sale displays, cabinetry and small machinery.

  • An expanded range may be available on special order. Please enquire.
  • 303 Stainless Steel
  • Nylon pad for glide applications

Product Data

  • Thread Size (A) : 1/4-20 UNC (6.35mm)
  • Base Diameter (D) 30.5 mm
    (Equiv. 1.201 in.)
  • Thread Length (F) 31.8 mm
  • Base Height (E) 25.4 mm
  • Overall Height (L) 57.15 mm
  • Load Rating 110 Kg
  • Pad Material Nylon
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • GL-180
    • GL180
    • MLM0110064C030S3N
    • MLM0110030064CS3N
