Miniature Bearings Australia
PLIT-120-191C-20-G-C - Datasheet
MBA
Category Information

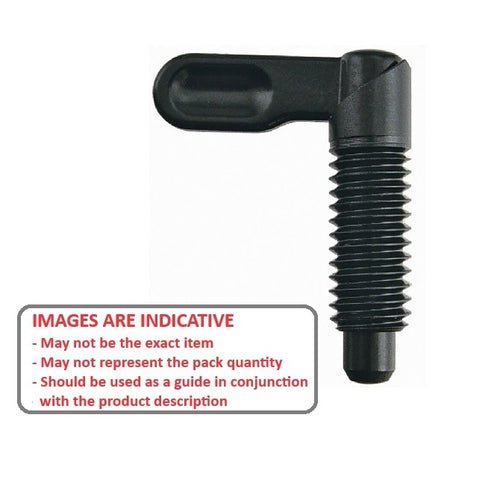

Plungers - Indexing - Grip - Steel - Without NutWithout Nut Steel Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

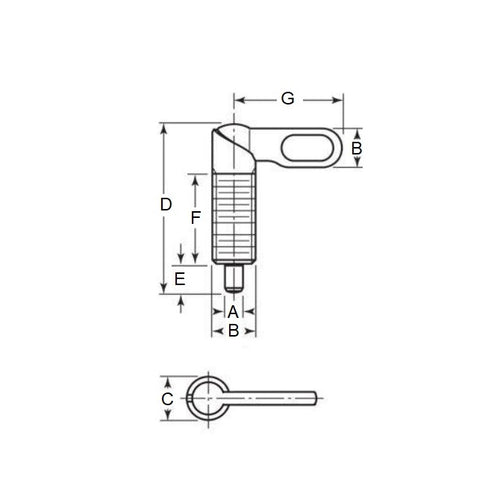

Product Data
- Thread (B) : 3/4-10 UNC (19.05mm)
- Thread Length (F)
35.0
mm
(Equiv. 1.378 in.) - Initial End Force 1.2 N
- Final End Force 2.0 N
- Tip Diameter (A) 12.0 mm
- Tip Length (E) 12.0 mm
- H 28.6
- Handle Length (G) 50.0 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KBP-690
- KBP690
