JLP-160RS - Datasheet
MBA
Category Information

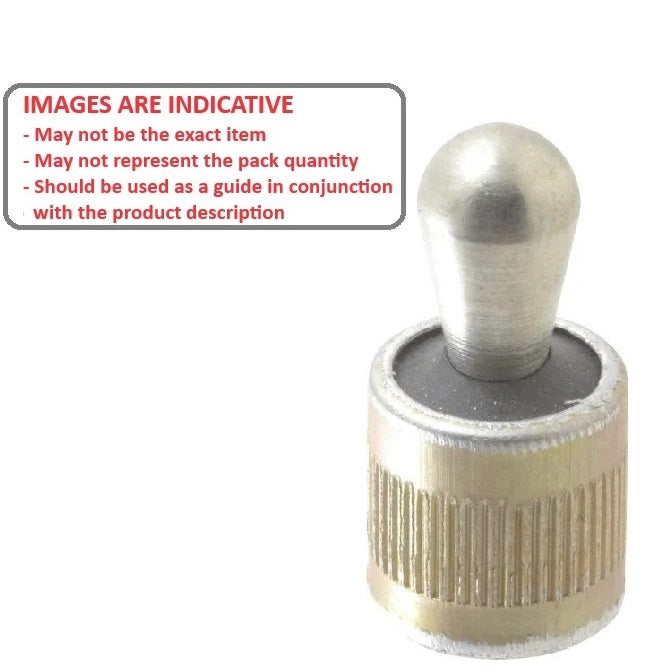

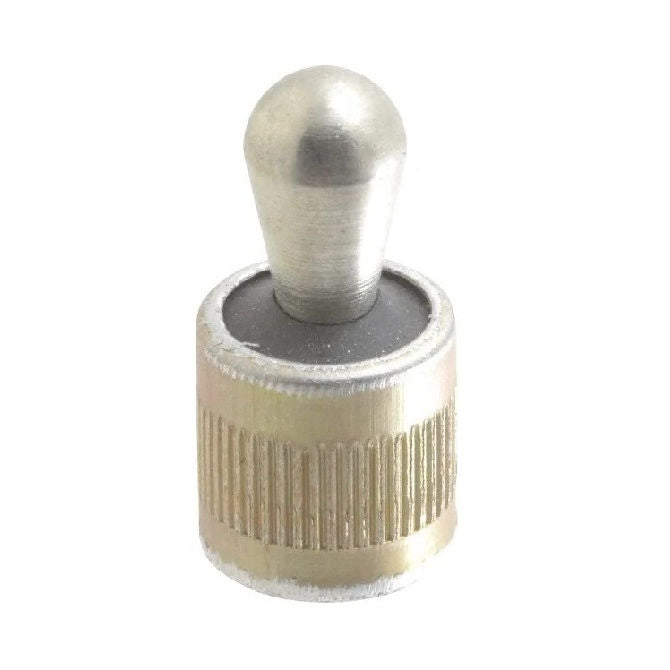

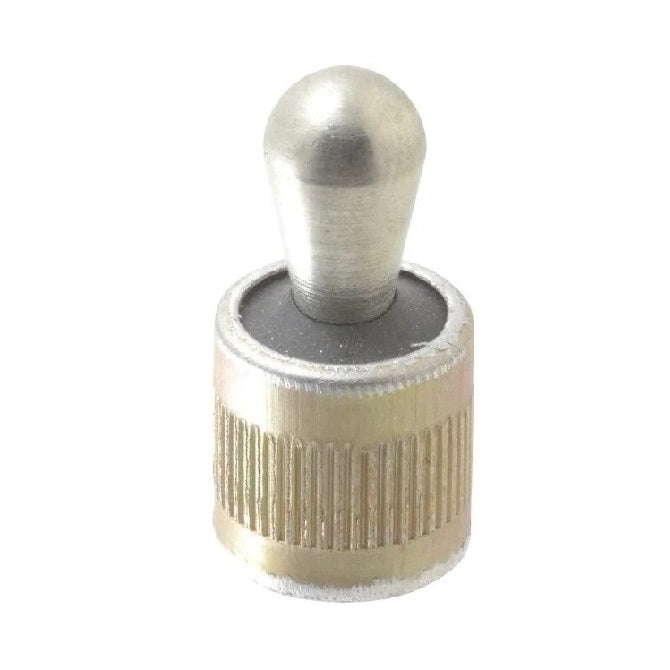

Pins - Locating Spring - Steel Pin - UnsealedUnsealed Steel Pin Locating Spring Pins. Aluminium Body. For fixturing small parts in tight areas. Ideal for positioning and chucking flat or round parts for profile clamping.
Product Data

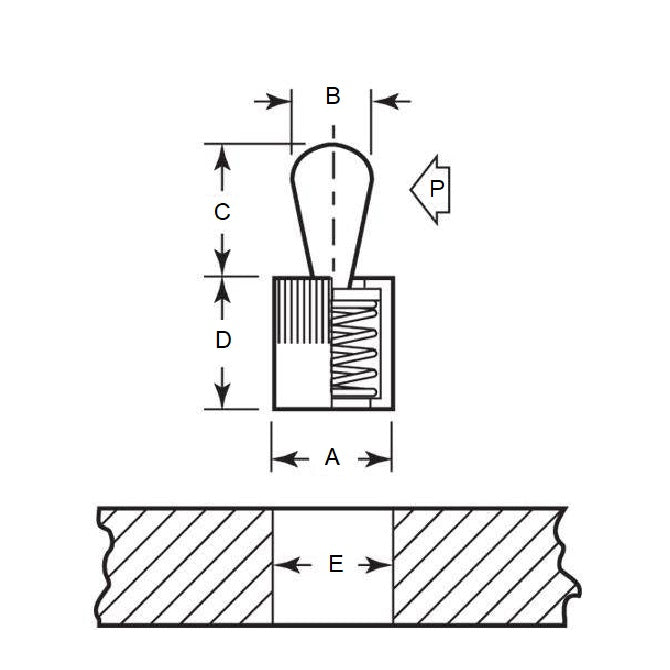

- Diameter (A) : 11.13 mm
- Pin Diameter (B) 5.99 mm
- Pin Height (C) 10.31 mm
- D 8.99 mm
- E 11.13 mm + 0.025 / - 0.000
- P Force 3.04 Kg
- X 1.91 mm
- Installation Tool JLP-410
- Material Carbon Steel
