Miniature Bearings Australia
RP111-0826-Z - Datasheet
Brighton Best
Category Information

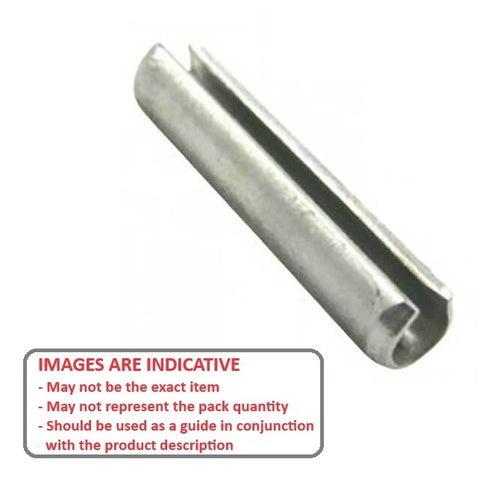

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
11.11
mm
(Equiv. 0.437 in.) - Length (L)
82.60
mm
(Equiv. 3.252 in.) - Free Diameter
12.22
mm
(Equiv. 0.481 in.) - Thickness (S) 1.96 mm
- Chamfer Length (cL) 0.43-2.41 mm
- Chamfer Diameter (cD) 10.9 mm
- Standard DIN1481 / ISO8752
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SP-437-3252
- Brighton Best V80329
- SP4373252
