ECB-0087-0111-S15 - Datasheet
MBA
Category Information

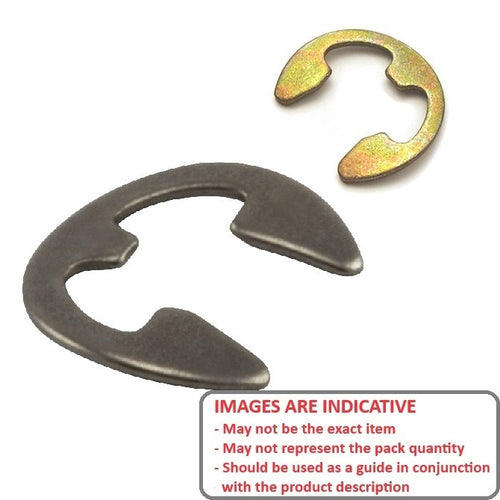

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.

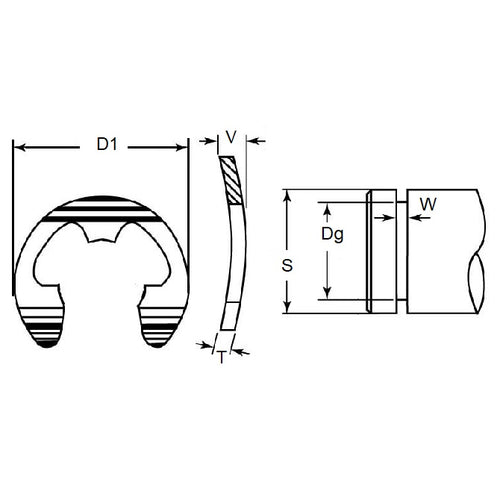

Product Data
- Minimum Rec. Shaft Dia (S)
:
11.11
mm
(Equiv. 0.437 in.) - Groove Dia. (Dg)
8.74
mm
+ 0.076 / - 0.000
(Equiv. 0.344 in.) - Clip Thickness (T)
0.89
mm
+/ - 0.051
(Equiv. 0.035 in.) - Clip OD Loose (D1) 17.45 mm
- Groove Width (W) 1.52 mm
- Ring Width (X) 1.52 mm
- Force Required to Flatten 22.3 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- N1501-0043KSF
- N15010043KSF
- S73KW2-131-43
- S73KW213143
