ECL-0087-0111A-S15 - Datasheet
MBA
Category Information

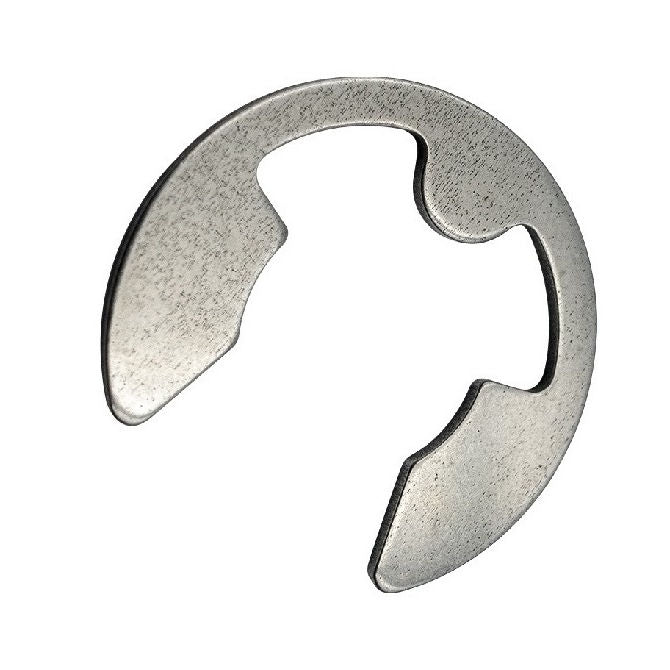

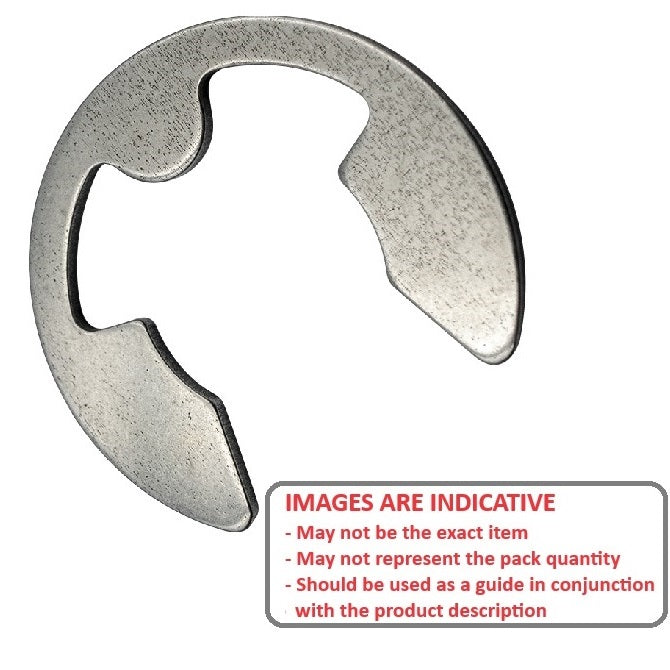

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.

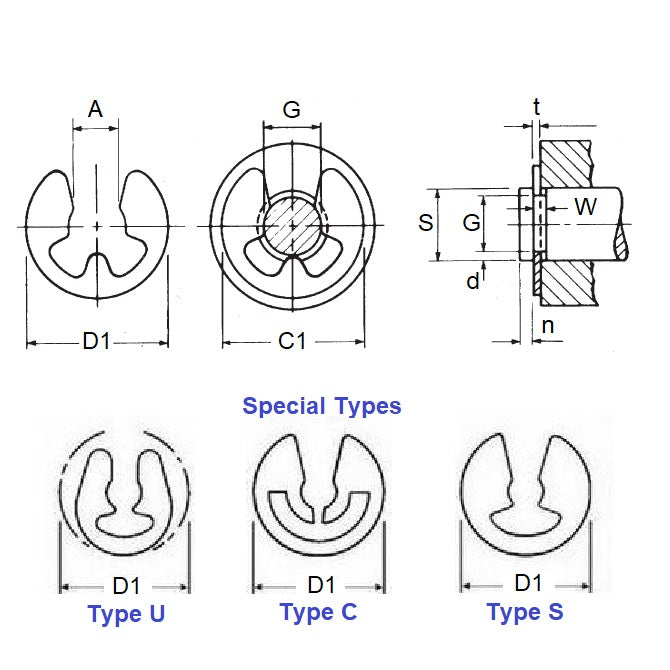

Product Data
- Minimum Rec. Shaft Dia (S)
:
11.11
mm
+ 2.54 / - 0.00
(Equiv. 0.437 in.) - Groove Dia. (Dg)
8.74
mm
+ 0.076 / - 0.000
(Equiv. 0.344 in.) - Clip Thickness (T)
0.89
mm
+/ - 0.050
(Equiv. 0.035 in.) - Clip OD Loose (D1) 17.45 mm
- Groove Width (W) 0.99 mm
- Maximum Rec. Shaft Dia (S) 13.65
- Clip OD in groove (C1) 18.03 mm
- Loose Clip ID (A) 8.56 mm
- Standard MIL-16633
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5133-043-SS
- 98408A136
- Ellison E-043-SS
- NoCor E-043-SS
- Rotorclip E-043-SS
- 5133043SS
- E043SS
- N1500-043-SS
- N1500043SS
- S73LW2ER13343
- S73LW2-ER133-43
