CB-475-111H-18-PS - Datasheet
KMS
Category Information

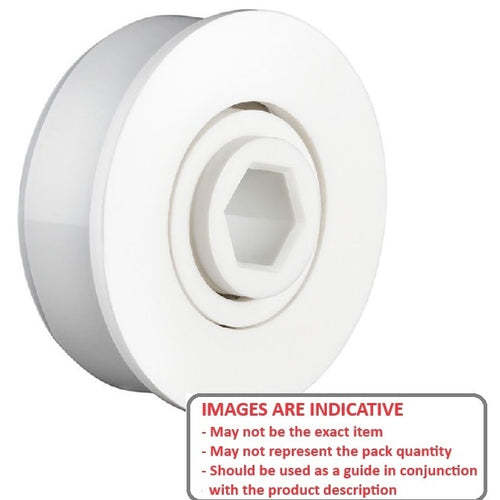

Bearings - Conveyor - Single Row - Hex Bore PlasticHex Bore Plastic Single Row Conveyor Bearings. Plastic hex bore conveyor bearings with 316 stainless balls
- This range includes plastic and stainless steel bearings for conveyor lines using hexagonal shafting.
- Both types are ideal for coping with regular washdown.
- Loads and Speeds are for reference only. Testing recommended.
Product Data

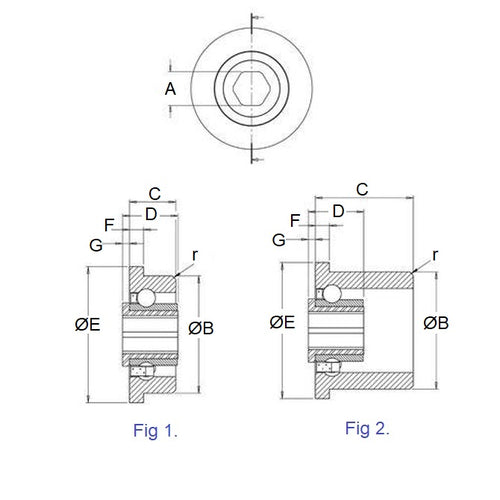

- Hex Bore (A)
:
11.11
mm
+ 0.30 / - 0.00
(Equiv. 0.437 in.) - OD (B)
47.50
mm
+/- 0.080
(Equiv. 1.87 in.) - Width (C)
17.78
mm
(Equiv. 0.7 in.) - Width (D) 15.24 mm
- Flange Dia. (E) 50.80 mm
- Flange Width (F) 2.54 mm
- Max Speed Unloaded 1069 RPM
- Dynamic Load 30 Kg
- Static Load 20 Kg
- Figure Fig 2
- Material Polypropylene Races with Stainless Steel 316 Balls
