CB-406-111H-18-6D - Datasheet
KMS
Category Information

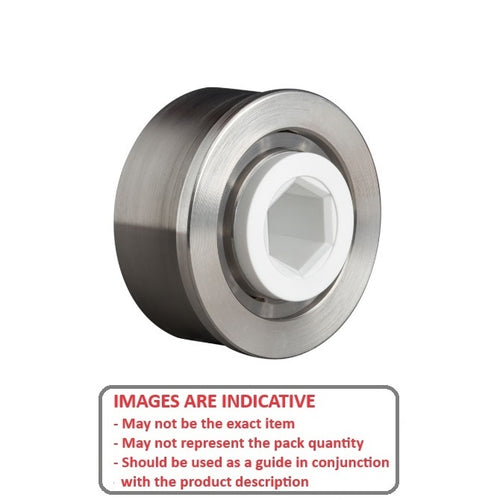

Bearings - Conveyor - Double Row - Hex Bore Stainless SteelHex Bore Stainless Steel Double Row Conveyor Bearings. 316 stainless conveyor bearings with plastic cage and plastic hex insert
- This range includes plastic and stainless steel bearings for conveyor lines using hexagonal shafting.
- Both types are ideal for coping with regular washdown.
- Loads and Speeds are for reference only. Testing recommended.
Product Data
- Hex Bore (A)
:
11.11
mm
+ 0.30 / - 0.00
(Equiv. 0.437 in.) - OD (B)
40.64
mm
+/- 0.080
(Equiv. 1.6 in.) - Width (C)
17.78
mm
(Equiv. 0.7 in.) - Width (D) 23.62 mm
- Flange Dia. (E) 45.72 mm
- Flange Width (F) 2.54 mm
- Max Speed Unloaded 855 RPM
- Dynamic Load 140 Kg
- Static Load 112 Kg

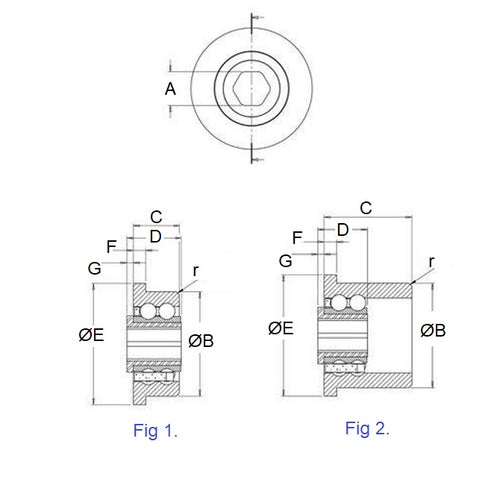

- Figure Fig 1
- Material Stainless Steel 316 Balls and Races
